LC1K0601B7S335

LC1K0601B7S335 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1K0601B7S335 Schneider Electric

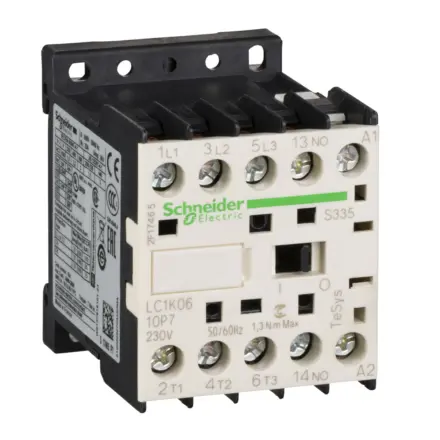

LC1K0601B7S335 Schneider Electric - contactor, TeSys K, 3P, AC-3 <=440V 6A, aux. 1NC, 24V AC coil

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£20.37 Exc. VAT
£24.44 Inc. VAT

Main

range of product TeSys K
Range TeSys
product or component type Contactor
Device short name LC1K
Contactor application Motor control
Utilisation category AC-3
Poles description 3P
Pole contact composition 3 NO
[Ie] rated operational current 20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit,6 A at <= 440 V AC AC-3 for power circuit,16 A (at <70 °C) at 690 V AC AC-1 for power circuit
Auxiliary contact composition 1 NC

Complementary

Control circuit type AC at 50/60 Hz
Motor power kW 1.5 kW at 220...230 V AC 50/60 Hz AC-3 for 3 phases motors,2.2 kW at 380...415 V AC 50/60 Hz AC-3 for 3 phases motors,3 kW at 440/690 V AC 50/60 Hz AC-3 for 3 phases motors,1.5 kW at 220...230 V AC 50/60 Hz AC-3e for 3 phases motors,2.2 kW at 380...415 V AC 50/60 Hz AC-3e for 3 phases motors,3 kW at 440/690 V AC 50/60 Hz AC-3e for 3 phases motors,1.5 kW at 400 V AC 50/60 Hz AC-4 for 3 phases motors
Auxiliary contacts type type instantaneous 1 NC
[Uc] control circuit voltage 24 V AC 50/60 Hz
Control circuit voltage limits Operational: 0.8...1.15 Uc (at <50 °C),Drop-out: 0.2...0.75 Uc (at <50 °C)
[Ui] rated insulation voltage Power circuit: 600 V conforming to UL 508,Power circuit: 600 V conforming to CSA C22.2 No 14,Signalling circuit: 600 V conforming to CSA C22.2 No 14,Power circuit: 750 V conforming to VDE 0110 group C,Power circuit: 690 V conforming to BS 5424,Power circuit: 690 V conforming to NF C 20-040,Power circuit: 690 V conforming to IEC 60947,Signalling circuit: 690 V conforming to IEC 60947,Signalling circuit: 690 V conforming to BS 5424,Signalling circuit: 600 V conforming to VDE 0110 group C
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
mounting support Rail,Plate
Standards EN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1
IP degree of protection IP20 conforming to VDE 0106
Protective treatment TC conforming to IEC 60068,TC conforming to DIN 50016
Flame retardance V1 conforming to UL 94,Requirement 2 conforming to NF F 16-101,Requirement 2 conforming to NF F 16-102
Tightening torque 0.8…1.3 N.m - on screw clamp terminals Philips No 2,0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm
[Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz,Signalling circuit: <= 690 V AC 50/60 Hz
[Ith] conventional free air thermal current 20 A (at 50 °C) for power circuit,10 A (at 50 °C) for signalling circuit
Irms rated making capacity 110 A AC for power circuit conforming to NF C 63-110,110 A AC for power circuit conforming to IEC 60947,110 A AC for signalling circuit conforming to IEC 60947
Rated breaking capacity 110 A at 415 V conforming to IEC 60947,110 A at 440 V conforming to IEC 60947,80 A at 500 V conforming to IEC 60947,110 A at 220...230 V conforming to IEC 60947,110 A at 380...400 V conforming to IEC 60947,70 A at 660...690 V conforming to IEC 60947
Associated fuse rating 25 A gG at <= 440 V for power circuit,25 A aM for power circuit,10 A gG for signalling circuit conforming to IEC 60947,10 A gG for signalling circuit conforming to VDE 0660
Average impedance 3 mOhm - Ith 20 A 50 Hz for power circuit
Inrush power in VA 30 VA (at 20 °C)
Hold-in power consumption in VA 4.5 VA (at 20 °C)
Heat dissipation 1.3 W
Operating time 10...20 ms coil de-energisation and NO opening,10...20 ms coil energisation and NO closing
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 10 Mcycles
Maximum operating rate 3600 cyc/h
Minimum switching current 5 mA for signalling circuit
Minimum switching voltage 17 V for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Height 58 mm
Width 45 mm
Depth 57 mm
net weight 0.235 kg

Environment

Product certifications CB Scheme,CCC,UL,CSA,EAC,CE,UKCA
Ambient air temperature for storage -50…80 °C
Operating altitude 2000 m without derating

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 6.2 cm
Package 1 Length 6.6 cm
Package 1 Weight 180.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
