LC1K0610B7TQ

LC1K0610B7TQ Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC1K0610B7TQ Schneider Electric

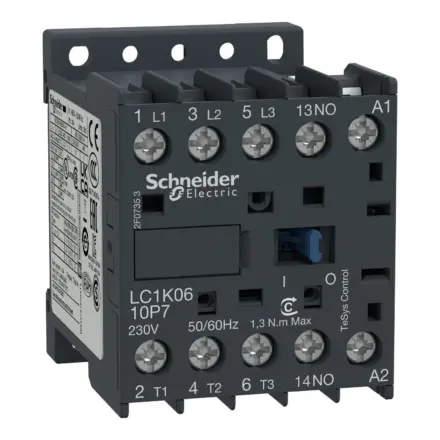

LC1K0610B7TQ Schneider Electric - contactor TeSys LC1-K - 3 poles - AC-3 440V 6 A - coil 24 V AC

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£17.19 Exc. VAT
£20.63 Inc. VAT

Main

Range TeSys
product or component type Contactor
Device short name LC1K
Contactor application Motor control

Complementary

Utilisation category AC-3,AC-3e,AC-4
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage Power circuit: <= 690 V AC <= 400 Hz,Signalling circuit: <= 690 V AC <= 400 Hz
[Ie] rated operational current 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Control circuit type AC at 50/60 Hz standard
[Uc] control circuit voltage 24 V AC 50/60 Hz
Motor power kW 1.5 kW at 220...230 V AC 50/60 Hz AC-3,2.2 kW at 380...415 V AC 50/60 Hz AC-3,3 kW at 440/690 V AC 50/60 Hz AC-3,1.5 kW at 220...230 V AC 50/60 Hz AC-3e,2.2 kW at 380...415 V AC 50/60 Hz AC-3e,3 kW at 440/690 V AC 50/60 Hz AC-3e,1.5 kW at 220...230 V AC 50/60 Hz AC-4,2.2 kW at 380...415 V AC 50/60 Hz AC-4,3 kW at 440/690 V AC 50/60 Hz AC-4
Auxiliary contact composition 1 NO
[Uimp] rated impulse withstand voltage 8 kV
[Ith] conventional free air thermal current 20 A (at 60 °C) for power circuit,10 A (at 50 °C) for signalling circuit
Irms rated making capacity 110 A AC for power circuit conforming to IEC 60947,110 A AC for signalling circuit conforming to IEC 60947
Rated breaking capacity 110 A at 220...230 V conforming to IEC 60947,110 A at 380...400 V conforming to IEC 60947,110 A at 415 V conforming to IEC 60947,110 A at 440 V conforming to IEC 60947,80 A at 500 V conforming to IEC 60947,70 A at 660...690 V conforming to IEC 60947
[Icw] rated short-time withstand current 90 A 50 °C - 1 s for power circuit,85 A 50 °C - 5 s for power circuit,80 A 50 °C - 10 s for power circuit,60 A 50 °C - 30 s for power circuit,45 A 50 °C - 1 min for power circuit,40 A 50 °C - 3 min for power circuit,20 A 50 °C - >= 15 min for power circuit,80 A - 1 s for signalling circuit,90 A - 500 ms for signalling circuit,110 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for control circuit conforming to IEC 60947,10 A gG for control circuit conforming to VDE 0660,25 A gG at <= 440 V for power circuit
Average impedance 3 mOhm - Ith 20 A 50 Hz for power circuit
[Ui] rated insulation voltage Control circuit: 690 V conforming to BS 5424,Control circuit: 690 V conforming to IEC 60947,Power circuit: 690 V conforming to BS 5424,Power circuit: 690 V conforming to IEC 60947,Power circuit: 690 V conforming to NF C 20-040,Control circuit: 750 V conforming to VDE 0110 group C,Power circuit: 750 V conforming to VDE 0110 group C,Control circuit: 600 V conforming to CSA C22.2 No 14,Power circuit: 600 V UL 508 certified conforming to CSA C22.2 No 14
Insulation resistance > 10 MOhm for control circuit
Inrush power in VA 30 VA (at 20 °C)
Hold-in power consumption in VA 4.5 VA 50/60 Hz (at 20 °C)
Control circuit voltage limits Operational: 0.8...1.15 Uc at 50/60 Hz (at <50 °C),Drop-out: >= 0.20 Uc at 50/60 Hz (at <50 °C)
Connections - terminals Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
Maximum operating rate 3600 cyc/h
Coil technology Without built-in bidirectional peak limiting diode suppressor
Minimum switching current 5 mA for control circuit
Minimum switching voltage 17 V for control circuit
mounting support Plate,Rail
Operating time 10...20 ms coil de-energisation and NO opening,15...25 ms coil de-energisation and NC opening,10...20 ms between energisation of coil and closing of NO contact,5...15 ms coil energisation and NC opening
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 10 Mcycles
Electrical durability 1.3 Mcycles 6 A AC-3 at Ue <= 440 V,1.3 Mcycles 6 A AC-3e at Ue <= 440 V,0.05 Mcycles 36 A AC-4 at Ue <= 440 V
Height 58 mm
Width 45 mm
Depth 57 mm
net weight 0.18 kg

Environment

Standards EN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1
Product certifications CB Scheme,CCC,UL,CSA,EAC,CE,UKCA
Ambient air temperature for storage -50…80 °C
Operating altitude 2000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance Class C2 conforming to NF F 16-101,Class C2 conforming to NF F 16-102,V1 conforming to UL 94

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 29.0 cm
Package 1 Length 29.5 cm
Package 1 Weight 172.0 g
Unit Type of Package 2 CAR
Number of Units in Package 2 30
Package 2 Height 6.7 cm
Package 2 Width 29.0 cm
Package 2 Length 29.5 cm
Package 2 Weight 5.227 kg
Unit Type of Package 3 S06
Number of Units in Package 3 300
Package 3 Height 73.5 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 65.27 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD

Environmental disclosure
