LC2F115

LC2F115 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC2F115 Schneider Electric

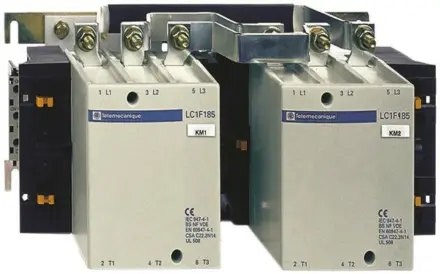

LC2F115 Schneider Electric - TeSys F reversing contactor - 3P(3 NO) AC-3 <= 440 V 115 A - without coil

Extended Description for LC2F115 Schneider Electric

LC2F115 Schneider Electric - TeSys F reversing contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V.,Without coil (to be ordered separately), it provides bolt terminals for bars or cables with lugs.,Equipped with pre-wired reversing power connections, mechanical interlock, without electrical interlocking.,Without build-in auxiliary contacts, front mounting auxiliary contact blocks LADN*1 to be added for electrical interlocking (to be ordered separately).,Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,146.80 Exc. VAT
£1,376.15 Inc. VAT

Main

Range TeSys
Product name TeSys F
product or component type Reversing contactor
Device short name LC2F
Contactor application Motor control,Resistive load
Utilisation category AC-1,AC-3
Device presentation Preassembled with reversing power busbar
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz,<= 460 V DC
[Ie] rated operational current 200 A (at <40 °C) at <= 440 V AC AC-1,115 A (at <55 °C) at <= 440 V AC AC-3
Motor power kW 55 kW at 380...400 V AC 50/60 Hz,59 kW at 415 V AC 50/60 Hz,59 kW at 440 V AC 50/60 Hz,65 kW at 1000 V AC 50/60 Hz,75 kW at 500 V AC 50/60 Hz,30 kW at 220...240 V AC 50/60 Hz,80 kW at 660...690 V AC 50/60 Hz
Auxiliary contact composition 1 NO
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
[Ith] conventional free air thermal current 200 A (at 40 °C)
Irms rated making capacity 1150 A AC conforming to IEC 60947-4-1
Rated breaking capacity 920 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 1100 A 40 °C - 10 s,640 A 40 °C - 30 s,520 A 40 °C - 1 min,400 A 40 °C - 3 min,320 A 40 °C - 10 min
Associated fuse rating 125 A aM at <= 440 V,200 A gG at <= 440 V
Average impedance 0.37 mOhm - Ith 200 A 50 Hz
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1,1500 V conforming to VDE 0110 group C
Power dissipation per pole 5 W AC-3
Interlocking type Mechanical
mounting support Plate
Standards EN 60947-4-1,IEC 60947-4-1,JIS C8201-4-1,EN 60947-1,IEC 60947-1
Product certifications RMRoS,CCC,UL,RINA,LROS (Lloyds register of shipping),CB,DNV,CSA,ABS,UKCA
Connections - terminals Power circuit: connector 1 cable(s) 95 mm²,Power circuit: lugs-ring terminals 1 cable(s) 95 mm²,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end,Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end,Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm
Tightening torque Power circuit: 10 N.m,Control circuit: 1.2 N.m

Environment

IP degree of protection IP2X front face with shrouds conforming to IEC 60529,IP2X front face with shrouds conforming to VDE 0106
Protective treatment TH
Ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -60…80 °C
Permissible ambient air temperature around the device -40…70 °C
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz,Vibrations contactor closed: 6 Gn, 5...300 Hz,Shocks contactor open: 9 Gn for 11 ms,Shocks contactor closed: 15 Gn for 11 ms
Height 162 mm
Width 345 mm
Depth 171 mm
net weight 7.56 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 21.600 cm
Package 1 Width 35.500 cm
Package 1 Length 53.000 cm
Package 1 Weight 8.889 kg

Contractual warranty

Warranty 18 months
