Schneider Electric

LC3D115P7

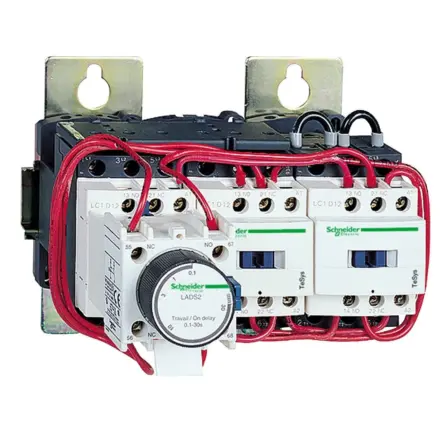

LC3D115P7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC3D115P7 Schneider Electric

LC3D115P7 Schneider Electric - TeSys D - star delta starter - 3 x 3P (3 NO) - 115 A - 230 V AC coil

Extended Description for LC3D115P7 Schneider Electric

LC3D115P7 Schneider Electric - TeSys D pre-assembled star-delta starter, for motor control applications up to 110kW@400V in delta connection.,Plate mounted starter, open version, composed of 3 contactors LC1D with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on line and 1NO on delta, and a time-delay contact block.,Maximum operating rate is 30 starts/hour and maximum starting time is 30 sec.,Plate assembly (450mm width, 525mm height), screw fixing.,Equipped with pre-wired star delta power connections, without mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended.,Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,163.74 Exc. VAT
£1,396.49 Inc. VAT

Main

Range TeSys
Product name TeSys Deca
product or component type Star delta starter
Device short name LC3D
Contactor application Motor control
Utilisation category AC-3
Device presentation Pre-wired
Poles description 3 x 3P
power pole contact composition 3 x 3 NO
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 110 kW at 380/400 V AC 50/60 Hz,110 kW at 415 V AC 50/60 Hz,110 kW at 440 V AC 50/60 Hz,63 kW at 220/230 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 230 V AC 50/60 Hz
Auxiliary contact composition 1 NC for KM2 line contactor,1 NO for KM3 delta contactor
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Overvoltage category III
[Ui] rated insulation voltage Power circuit: 600 V CSA certified,Power circuit: 600 V UL certified,Signalling circuit: 600 V CSA certified,Signalling circuit: 600 V UL certified,Power circuit: 1000 V conforming to IEC 60947-4-1,Signalling circuit: 1000 V conforming to IEC 60947-1
Electrical durability 0.95 Mcycles 115 A AC-3 at Ue <= 440 V
mounting support Plate
Standards UL 508,EN 60947-5-1,IEC 60947-5-1,IEC 60947-4-1,EN 60947-4-1,CSA C22.2 No 14
Product certifications GOST,RINA,BV,DNV,CSA,UL,GL,LROS (Lloyds register of shipping),CCC

Complementary

Connections - terminals Power circuit: connector 1 10…120 mm² - cable stiffness: flexible without cable end,Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end,Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with cable end,Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with cable end,Power circuit: connector 1 10…120 mm² - cable stiffness: solid without cable end,Power circuit: connector 2 10…50 mm² - cable stiffness: solid without cable end,Control circuit: connector 1 1…2.5 mm² - cable stiffness: flexible without cable end,Control circuit: connector 2 1…2.5 mm² - cable stiffness: flexible without cable end,Control circuit: connector 1 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: connector 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: connector 1 1…2.5 mm² - cable stiffness: solid without cable end,Control circuit: connector 2 1…2.5 mm² - cable stiffness: solid without cable end
Tightening torque Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6...8 mm,Control circuit: 1.2 N.m - on connector - with screwdriver flat Ø 6 mm,Control circuit: 1.2 N.m - on connector - with screwdriver Philips No 2
Mechanical durability 8 Mcycles
Maximum operating rate 30 cyc/h 60 °C
Starting time 30 s
Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C),Operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)
Inrush power in VA 280…350 VA 60 Hz cos phi 0.8 (at 20 °C),280…350 VA 50 Hz cos phi 0.8 (at 20 °C)
Hold-in power consumption in VA 2…18 VA 60 Hz cos phi 0.3 (at 20 °C),2…18 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 3…8 W at 50/60 Hz
Auxiliary contacts type Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC,Mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency 25...400 Hz
Minimum switching current 5 mA for signalling circuit
minimum switching voltage 17 V for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact,1.5 ms on energisation between NC and NO contact
Width 450 mm
Height 555 mm
Depth 205 mm
net weight 11.8 kg

Environment

Insulation resistance > 10 MOhm for signalling circuit
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Ambient air temperature for storage -60…80 °C
Ambient air temperature for operation -40…60 °C,60…70 °C with derating
Operating altitude 3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz,Vibrations contactor closed: 4 Gn, 5...300 Hz,Shocks contactor closed: 15 Gn for 11 ms,Shocks contactor open: 6 Gn for 11 ms

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 35.0 cm
Package 1 Width 67.0 cm
Package 1 Length 77.0 cm
Package 1 Weight 11.8 kg

Contractual warranty

Warranty 18 months
