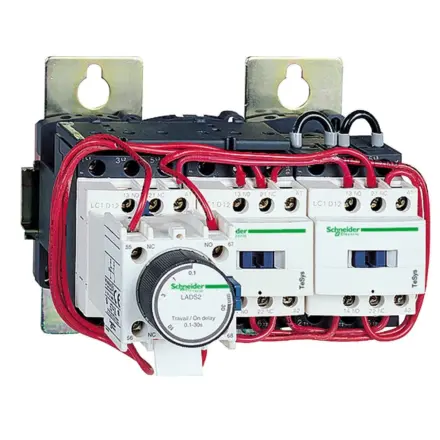

LC3D150M7A64 Schneider Electric - TeSys D - star delta starter - 3 x 3P (3 NO) - 150 A - 220 V AC coil

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2,537.47 Exc. VAT
£3,044.97 Inc. VAT

Main

Range TeSys
Product name TeSys Deca
product or component type Star delta starter
Device short name LC3D
Contactor application Motor control
Utilisation category AC-3
Device presentation Pre-wired
Poles description 3 x 3P
power pole contact composition 3 x 3 NO
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 132 kW at 380/400 V AC 50/60 Hz,132 kW at 415 V AC 50/60 Hz,147 kW at 440 V AC 50/60 Hz,75 kW at 220/230 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
Auxiliary contact composition 1 NC for KM1 star contactor,1 NC for KM2 line contactor,1 NO for KM3 delta contactor
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Overvoltage category III
[Ui] rated insulation voltage Power circuit: 600 V CSA certified,Power circuit: 600 V UL certified,Signalling circuit: 600 V CSA certified,Signalling circuit: 600 V UL certified,Power circuit: 1000 V conforming to IEC 60947-4-1,Signalling circuit: 1000 V conforming to IEC 60947-1
Electrical durability 0.85 Mcycles 150 A AC-3 at Ue <= 440 V
Interlocking type Mechanical
mounting support Plate
Standards EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,CSA C22.2 No 14,IEC 60947-5-1,UL 508
Product certifications UL,LROS (Lloyds register of shipping),GL,GOST,DNV,BV,CSA,CCC,RINA

Complementary

Connections - terminals Power circuit: connector 1 10…120 mm² - cable stiffness: flexible without cable end,Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end,Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with cable end,Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with cable end,Power circuit: connector 1 10…120 mm² - cable stiffness: solid without cable end,Power circuit: connector 2 10…50 mm² - cable stiffness: solid without cable end,Control circuit: connector 1 1…2.5 mm² - cable stiffness: flexible without cable end,Control circuit: connector 2 1…2.5 mm² - cable stiffness: flexible without cable end,Control circuit: connector 1 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: connector 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: connector 1 1…2.5 mm² - cable stiffness: solid without cable end,Control circuit: connector 2 1…2.5 mm² - cable stiffness: solid without cable end
Tightening torque Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6...8 mm,Control circuit: 1.2 N.m - on connector - with screwdriver flat Ø 6 mm,Control circuit: 1.2 N.m - on connector - with screwdriver Philips No 2
Mechanical durability 8 Mcycles
Maximum operating rate 30 cyc/h 60 °C
Starting time 30 s
Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C),Operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)
Inrush power in VA 280…350 VA 60 Hz cos phi 0.9 (at 20 °C),280…350 VA 50 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA 2…18 VA 60 Hz cos phi 0.9 (at 20 °C),2…18 VA 50 Hz cos phi 0.9 (at 20 °C)
Heat dissipation 3…4.5 W at 50/60 Hz
Auxiliary contacts type Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC,Mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency 25...400 Hz
Minimum switching current 5 mA for signalling circuit
minimum switching voltage 17 V for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact,1.5 ms on energisation between NC and NO contact
Width 450 mm
Height 555 mm
Depth 205 mm
net weight 12.1 kg

Environment

Insulation resistance > 10 MOhm for signalling circuit
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Ambient air temperature for storage -60…80 °C
Ambient air temperature for operation -40…60 °C,60…70 °C with derating
Operating altitude 3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz,Vibrations contactor closed: 4 Gn, 5...300 Hz,Shocks contactor closed: 15 Gn for 11 ms,Shocks contactor open: 6 Gn for 11 ms

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 35.0 cm
Package 1 Width 67.0 cm
Package 1 Length 77.0 cm
Package 1 Weight 12.1 kg

Contractual warranty

Warranty 18 months
