Schneider Electric

LC3D80F7

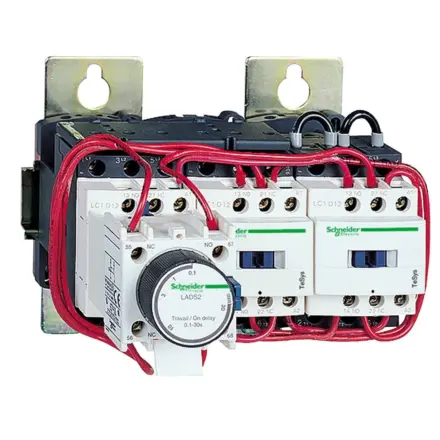

LC3D80F7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC3D80F7 Schneider Electric

LC3D80F7 Schneider Electric - TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 110 V AC coil

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£996.49 Exc. VAT
£1,195.79 Inc. VAT

Main

Range TeSys
Product name TeSys Deca
product or component type Star delta starter
Device short name LC3D
Contactor application Motor control
Utilisation category AC-3
Device presentation Pre-wired
Poles description 3 x 3P
power pole contact composition 3 x 3 NO
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 37 kW at 220/230 V AC 50/60 Hz,75 kW at 380/400 V AC 50/60 Hz,75 kW at 415 V AC 50/60 Hz,75 kW at 440 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 110 V AC 50/60 Hz
Auxiliary contact composition 1 NC for KM2 line contactor,1 NO for KM3 delta contactor
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Overvoltage category III
[Ui] rated insulation voltage Power circuit: 600 V CSA certified,Power circuit: 600 V UL certified,Signalling circuit: 600 V CSA certified,Signalling circuit: 600 V UL certified,Power circuit: 1000 V conforming to IEC 60947-4-1,Signalling circuit: 1000 V conforming to IEC 60947-1
Electrical durability 10 Mcycles 80 A AC-3 at Ue <= 440 V
mounting support Plate
Standards IEC 60947-5-1,CSA C22.2 No 14,IEC 60947-4-1,EN 60947-5-1,UL 508,EN 60947-4-1
Product certifications GOST,UL,BV,RINA,LROS (Lloyds register of shipping),DNV,CSA,GL,CCC

Complementary

Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end,Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: flexible without cable end,Power circuit: screw clamp terminals 2 4…25 mm² - cable stiffness: flexible without cable end,Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: flexible with cable end,Power circuit: screw clamp terminals 2 4…16 mm² - cable stiffness: flexible with cable end,Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: solid without cable end,Power circuit: screw clamp terminals 2 4…25 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Tightening torque Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm,Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2,Power circuit: 12 N.m - on screw clamp terminals - with screwdriver flat Ø 6...8 mm
Mechanical durability 4 Mcycles
Maximum operating rate 30 cyc/h 60 °C
Starting time 30 s
Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C),Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C),Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
Inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 20 °C),160 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 20 °C),15 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 4…5 W at 50/60 Hz
Auxiliary contacts type Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC,Mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency 25...400 Hz
Minimum switching current 5 mA for signalling circuit
minimum switching voltage 17 V for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact,1.5 ms on energisation between NC and NO contact
Width 311 mm
Height 143 mm
Depth 183 mm
net weight 5.2 kg

Environment

Insulation resistance > 10 MOhm for signalling circuit
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Ambient air temperature for storage -60…80 °C
Ambient air temperature for operation -40…60 °C,60…70 °C with derating
Operating altitude 3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz,Shocks contactor open: 8 Gn for 11 ms,Vibrations contactor closed: 3 Gn, 5...300 Hz,Shocks contactor closed: 10 Gn for 11 ms

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 27.0 cm
Package 1 Width 26.0 cm
Package 1 Length 38.0 cm
Package 1 Weight 6.455 kg

Contractual warranty

Warranty 18 months
