Schneider Electric

LC3F225M7

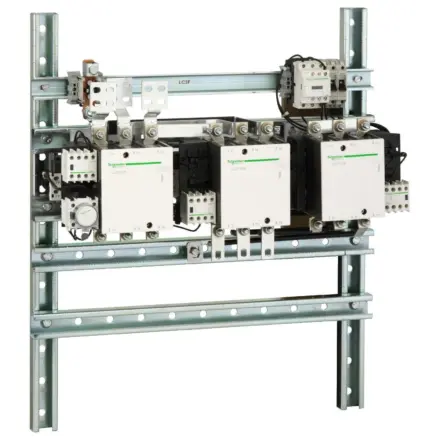

LC3F225M7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC3F225M7 Schneider Electric

LC3F225M7 Schneider Electric - TeSys F - star delta starter - 3 x 3P (3 NO) - 225 A - 220/230 V AC coil

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£6,613.75 Exc. VAT
£7,936.50 Inc. VAT

Main

Range TeSys
Product name TeSys F
product or component type Star delta starter
Device short name LC3F
Contactor application Motor control
Utilisation category AC-3
Device presentation Pre-wired
Poles description 3 x 3P
power pole contact composition 3 x 3 NO
[Ue] rated operational voltage Power circuit: <= 1000 V AC 16 Hz 2/3...200 Hz
[Ie] rated operational current 225 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 100 kW at 220/230 V AC 50/60 Hz,200 kW at 380/400 V AC 50/60 Hz,200 kW at 415 V AC 50/60 Hz,220 kW at 440 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 220/230 V AC 50/60 Hz
Auxiliary contact composition 1 NC for KM1 star contactor,1 NO for KM1 star contactor,2 NC for KM2 line contactor,1 NO for KM2 line contactor,1 NC for KM3 delta contactor,2 NO for KM3 delta contactor
[Uimp] rated impulse withstand voltage 8 kV
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1,1500 V conforming to VDE 0110 group C
Interlocking type Without start delta mechanical interlock
mounting support Plate
Standards JIS C8201-4-1,EN 60947-1,IEC 60947-1,EN 60947-4-1,IEC 60947-4-1
Product certifications CB,CCC,RMRoS,DNV,ABS,LROS (Lloyds register of shipping),UL,RINA,CSA

Complementary

[Ith] conventional free air thermal current 315 A 40 °C
Irms rated making capacity 2250 A conforming to IEC 60947-4-1
Rated breaking capacity 1800 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 1800 A 40 °C - 10 s,1000 A 40 °C - 30 s,850 A 40 °C - 1 min,560 A 40 °C - 3 min,440 A 40 °C - 10 min
Associated fuse rating 315 A gG at <= 440 V,250 A aM at <= 440 V
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end,Power circuit: bar 2 - busbar cross section: 32 x 4 mm,Power circuit: bolted connection,Power circuit: lugs-ring terminals 1 185 mm²,Power circuit: connector 1 185 mm²
connections bolt diameter M10
Tightening torque Control circuit: 1.2 N.m,Power circuit: 35 N.m
Operating time 20...35 ms closing,7...15 ms opening
Mechanical durability 10 Mcycles
Maximum operating rate 2400 cyc/h 55 °C
Starting time 20 s
Control circuit voltage limits Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C),Drop-out: 0.35...0.55 Uc at 50/60 Hz (at <55 °C)
Inrush power in VA 805 VA 50 Hz cos phi 0.3 (at 20 °C),970 VA 60 Hz cos phi 0.3 (at 20 °C)
Hold-in power consumption in VA 55 VA 50 Hz cos phi 0.3 (at 20 °C),66 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 18…24 W
Width 525 mm
Height 110 mm
Depth 235 mm
net weight 16.5 kg

Environment

IP degree of protection IP20 front face with shrouds conforming to IEC 60529,IP20 front face with shrouds conforming to VDE 0106
Protective treatment TH
Ambient air temperature for storage -60…80 °C
Ambient air temperature for operation -5…55 °C,-40…70 °C at Uc
Operating altitude 3000 m without derating
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz,Shocks contactor closed: 15 Gn for 11 ms,Vibrations contactor closed: 5 Gn, 5...300 Hz,Shocks contactor open: 7 Gn for 11 ms

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 36.0 cm
Package 1 Width 66.0 cm
Package 1 Length 75.0 cm
Package 1 Weight 26.527 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure
