Schneider Electric

LC3K09P7

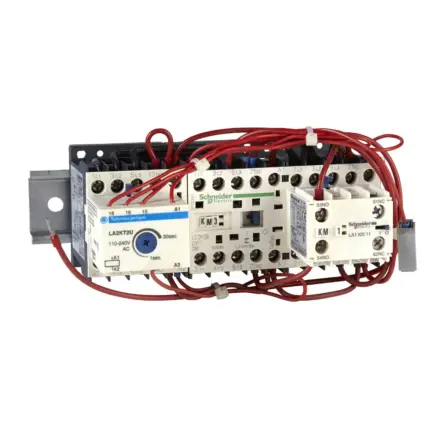

LC3K09P7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LC3K09P7 Schneider Electric

LC3K09P7 Schneider Electric - TeSys K - star delta starter - 3 x 3P (3 NO) - 9 A - 230 V AC coil

Extended Description for LC3K09P7 Schneider Electric

LC3K09P7 Schneider Electric - TeSys K pre-assembled star-delta starter, for motor control applications up to 7.5kW@400V in delta connection.,Rail mounted starter, open version, composed of 3 contactors LC1K with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec.,For operating rates until 12 starts/hour, maximum starting time 30 sec.,Compact assembly (175mm width), screw fixing.,Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended.,Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£117.35 Exc. VAT
£140.83 Inc. VAT

Main

Range TeSys
Product name TeSys K
product or component type Star delta starter
Device short name LC3K
Contactor application Motor control
Utilisation category AC-3
Device presentation Pre-wired
Poles description 3 x 3P
power pole contact composition 3 x 3 NO
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 9 A (at <50 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 4 kW at 220/230 V AC 50/60 Hz,7.5 kW at 380/400 V AC 50/60 Hz,7.5 kW at 415 V AC 50/60 Hz,7.5 kW at 440 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 230 V AC 50/60 Hz
Auxiliary contact composition 1 NC for KM1 star contactor
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
[Ui] rated insulation voltage Power circuit: 750 V conforming to VDE 0110 group C,Power circuit: 690 V conforming to IEC 60947,Power circuit: 690 V conforming to BS 5424,Power circuit: 690 V conforming to NF C 20-040,Power circuit: 600 V CSA 22-2 certified,Power circuit: 600 V UL 508 certified,Signalling circuit: 750 V conforming to VDE 0110 group C,Signalling circuit: 690 V conforming to IEC 60947,Signalling circuit: 690 V conforming to BS 5424,Signalling circuit: 690 V conforming to NF C 20-040,Signalling circuit: 600 V CSA 22-2 certified,Signalling circuit: 600 V UL 508 certified
Electrical durability 1.3 Mcycles 9 A AC-3 at Ue <= 440 V
Interlocking type Mechanical
mounting support Rail
Standards IEC 60947,NF C 63-110,VDE 0660

Complementary

Connections - terminals Screw clamp terminals 1 1.5…4 mm² - cable stiffness: solid,Screw clamp terminals 1 0.75…4 mm² - cable stiffness: flexible without cable end,Screw clamp terminals 1 0.34…2.5 mm² - cable stiffness: flexible with cable end,Screw clamp terminals 2 1.5…4 mm² - cable stiffness: solid,Screw clamp terminals 2 0.75…4 mm² - cable stiffness: flexible without cable end,Screw clamp terminals 2 0.34…1.5 mm² - cable stiffness: flexible with cable end
Tightening torque 0.8…1.3 N.m - on screw clamp terminals Philips No 2,0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm,0.8…1.3 N.m - on screw clamp terminals pozidriv No 2
Mechanical durability 10 Mcycles
Maximum operating rate 12 cyc/h 60 °C
Starting time 30 s
Coil technology Without built-in suppressor module
Control circuit voltage limits Operational: 0.8...1.15 Uc (at <50 °C),Drop-out: 0.2...0.75 Uc (at <50 °C)
Inrush power in VA 30 VA (at 20 °C)
Hold-in power consumption in VA 4.5 VA (at 20 °C)
Heat dissipation 1.3 W
Auxiliary contacts type Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC,Mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Minimum switching current 5 mA for signalling circuit
minimum switching voltage 17 V for signalling circuit
Width 150 mm
Height 110 mm
Depth 94 mm
net weight 0.74 kg

Environment

Insulation resistance > 10 MOhm for signalling circuit
IP degree of protection IP20 conforming to VDE 0106
Protective treatment TC conforming to IEC 60068,TC conforming to DIN 50016
Ambient air temperature for storage -50…80 °C
Operating altitude 2000 m without derating
Flame retardance V1 conforming to UL 94,Requirement 2 conforming to NF F 16-101,Requirement 2 conforming to NF F 16-102
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz,Vibrations contactor closed: 4 Gn, 5...300 Hz,Shocks contactor closed, on X axis: 10 Gn for 11 ms,Shocks contactor opened, on X axis: 6 Gn for 11 ms,Shocks contactor closed, on Y axis: 15 Gn for 11 ms,Shocks contactor opened, on Y axis: 10 Gn for 11 ms,Shocks contactor closed, on Z axis: 15 Gn for 11 ms,Shocks contactor opened, on Z axis: 10 Gn for 11 ms

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 10.5 cm
Package 1 Length 18.5 cm
Package 1 Weight 900.0 g

Contractual warranty

Warranty 18 months
