Schneider Electric

LP1D80008ED

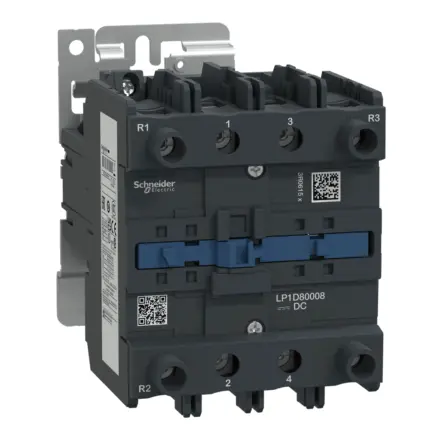

LP1D80008ED Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LP1D80008ED Schneider Electric

LP1D80008ED Schneider Electric - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 48 V DC coil

Extended Description for LP1D80008ED Schneider Electric

LP1D80008ED Schneider Electric - TeSys Deca contactor, 4P(2NO/2NC) for category AC-1 applications up to 125A @440V.,It provides with 48V DC sdandard coil, with no auxiliary contacts, power and control connections by screw clamp terminals.,It procures with 10 Mcycles mechanical durability and 0.8 Mcycles electrical durability.,It provides IP20 protection on front face conforming to IEC 60529.,It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude.,Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C.,The dimension is 127mm x 96mm x 196mm (H x W x D), mounting on rail or plate.,Multi standards certified(UL,LROS,CSA,CCC,EAC,UKCA,CB,DNV-GL,RINA,BV) and Green Premium compliant (RoHs/Reach).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£359.29 Exc. VAT
£431.15 Inc. VAT

Main

Range TeSys
range of product TeSys Deca
product or component type Contactor
Device short name LP1D
Contactor application Resistive load
Utilisation category AC-1
Poles description 4P
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 48 V DC

Complementary

compatibility code LP1D
Pole contact composition 2 NO + 2 NC
Protective cover Without
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 135 A 40 °C - 10 min for power circuit,320 A 40 °C - 1 min for power circuit,640 A 40 °C - 10 s for power circuit,990 A 40 °C - 1 s for power circuit
Associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit,160 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1
[Ui] rated insulation voltage Power circuit: 600 V CSA certified,Power circuit: 600 V UL certified,Power circuit: 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 10 Mcycles
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Control circuit type DC DC standard
Coil technology Without built-in suppressor module
Control circuit voltage limits 0.1...0.3 Uc (-40…55 °C):drop-out DC,0.85...1.1 Uc (-40…55 °C):operational DC
Inrush power in W 22 W (at 20 °C)
Hold-in power consumption in W 22 W at 20 °C
Operating time 6...20 ms opening,20...35 ms closing
Time constant 75 ms
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end,Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end,Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: solid,Power circuit: connector 2 4…25 mm² - cable stiffness: solid,Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Tightening torque Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm,Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2,Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm,Power circuit: 12 N.m - on connector hexagonal screw head 4 mm,Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
mounting support Plate,Rail

Environment

Standards CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Product certifications UL,CSA,CCC,EAC,UKCA,CB,DNV-GL,RINA,BV,LROS (Lloyds register of shipping)
IP degree of protection IP20 front face conforming to IEC 60529
Permissible ambient air temperature around the device -40…60 °C,60…70 °C with derating
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) ,Vibrations contactor closed (3 Gn, 5...300 Hz) ,Shocks contactor open (8 Gn for 11 ms) ,Shocks contactor closed (10 Gn for 11 ms)
Height 127 mm
Width 96 mm
Depth 196 mm
net weight 2.91 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 21.0 cm
Package 1 Width 11.0 cm
Package 1 Length 14.0 cm
Package 1 Weight 2.777 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
