Schneider Electric

LR97D015E

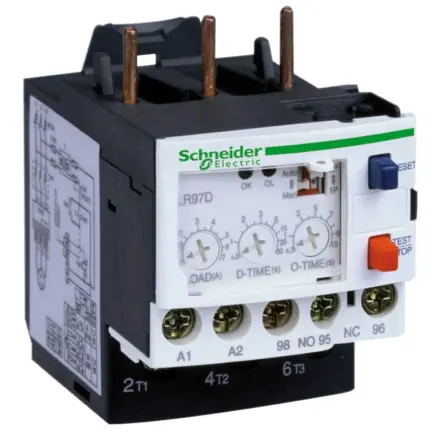

LR97D015E Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LR97D015E Schneider Electric

LR97D015E Schneider Electric - electronic overload relay for motor TeSys - 0.3...1.5 A - 48 V AC/DC

Extended Description for LR97D015E Schneider Electric

LR97D015E Schneider Electric - TeSys LR97D electronic overcurrent relay, 1.5A/690V, to be supplied with 48V AC/DC, for protection of motors with a rated current 0.3-1.3A.,It provides 3 dials to adjust the protection, LOAD (0.3-1.5A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration.,In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec.,The settings include selectors for 1-phase/3-phase motors and manual/automatic reset, and the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signalling.,Settings can be locked by sealing the transparent cover.,For direct attachement to the bottom terminals of a 3-pole contactor LC1D09-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately).,Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£63.11 Exc. VAT
£75.73 Inc. VAT

Main

Device short name LR97
product or component type Electronic overcurrent relay
device application Protection
Relay application Locked rotor, mechanical jamming I > 3 x Isetting,Sensitivity to phase failure,Overload Imax > Isetting
Product compatibility LC1D09...D38
Network type DC,AC
[Us] rated supply voltage 48 V AC/DC
Thermal protection adjustment range 0.3…1.5 A
Quantity per set Set of 10

Complementary

Network frequency 50...60 Hz
Mounting support Direct on contactor,Rail
Tripping threshold 0.3...1.3 A
Surge withstand 6 kV conforming to IEC 61000-4-5
Contacts type and composition 1 C/O
[Ith] conventional free air thermal current 3 A for control circuit
Protection type BS fuse 3 A - for control circuit,GB2 circuit breaker 3 A - for control circuit,GG fuse 3 A - for control circuit
Maximum power 28 W at 110 V DC conforming to IEC 60947,28 W at 220 V DC conforming to IEC 60947,55 W at 24 V DC conforming to IEC 60947,55 W at 48 V DC conforming to IEC 60947,140 VA at 48 V AC conforming to IEC 60947,360 VA at 110 V AC conforming to IEC 60947,360 VA at 220 V AC conforming to IEC 60947,70 VA at 24 V AC conforming to IEC 60947
[Ui] rated insulation voltage Power circuit: 600 V conforming to CSA,Power circuit: 600 V conforming to UL,Power circuit: 690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV
Phase failure sensitivity < 3 s
Reset Automatic reset 120 s fixed,Electrical by interruption of power supply for minimum 0.1 s,Manual reset
Time range 0.2...10 s - O-time knob,0.3...10 s - O-time knob,0.5..30 s - D-time knob
Signalling function 2 LEDs
Connections - terminals Control circuit: cable 1 x 1…25 mm²flexible with cable end,Control circuit: cable 1 x 1…25 mm²flexible without cable end,Control circuit: cable 1 x 2.5 mm²flexible without cable end,Control circuit: lug-clamp 1 x 0.34 mm²flexible with cable end,Control circuit: lug-clamp 1 x 0.75 mm²flexible without cable end,Control circuit: lug-clamp 2 x 1.5 mm²flexible with cable end,Control circuit: lug-clamp 2 x 2.5 mm²flexible without cable end,Power circuit: cable 1 x 1…4 mm²flexible with cable end,Power circuit: cable 1 x 1.5…10 mm²flexible without cable end,Power circuit: lug-clamp 1 x 1…4 mm²flexible with cable end,Power circuit: lug-clamp 1 x 1.5…10 mm²flexible without cable end
Tightening torque Control circuit: 0.6...1.2 N.m on lug-clamp,Power circuit: 2 N.m on cable
Height 67.5 mm
Width 45 mm
Depth 67.5 mm
net weight 0.172 kg

Environment

Standards IEC 60947,IEC 60255-6
Product certifications UL,CSA,GOST
Protective treatment TH conforming to IEC 60068
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -25…60 °C conforming to IEC 60947-4-1
Ambient air temperature for storage -30…80 °C
Operating altitude 2000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Shock resistance 15 gn 11 ms conforming to IEC 60068-2-7
Vibration resistance 4 gn conforming to IEC 60068-2-6
Dielectric strength 2 V 50 Hz conforming to IEC 60255-5
Resistance to electrostatic discharge 6 kV in indirect mode,8 kV in air
Resistance to radiated fields 10 V/m level 3
Resistance to fast transients 2 kV
Disturbance radiated/conducted 10 V conforming to EN 61000-4-6,Class A conforming to EN 55011

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 6.9 cm
Package 1 Length 7.6 cm
Package 1 Weight 180.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 24
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.775 kg

Contractual warranty

Warranty 18 months
