Schneider Electric

LS1D253A65

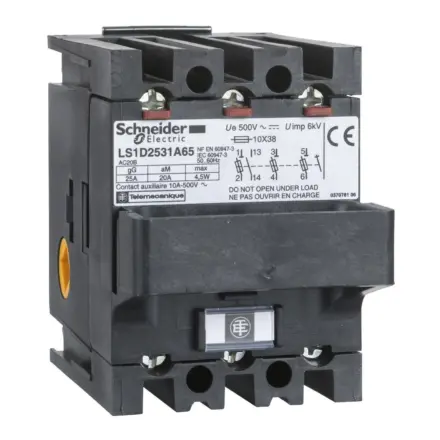

LS1D253A65 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LS1D253A65 Schneider Electric

LS1D253A65 Schneider Electric - fuse disconnector body - LS1 - 3 poles - 25 A - for fuse NFC 10 x 38 mm

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£82.25 Exc. VAT
£98.70 Inc. VAT

Main

Range TeSys
Product name TeSys LS1
product or component type Fuse-disconnector
Device short name LS1D
Poles description 3P

Complementary

mounting support Rail
Mounting position Vertical (tolerance: +/- 23°)
Control type Toggle
[Ue] rated operational voltage Power circuit: 690 V AC,Signalling circuit: 500 V AC,Signalling circuit: 440 V DC
[Ie] rated operational current 20 A for power circuit,10 A for signalling circuit
Contacts type and composition 2 C/O early-break
Fuse size 10 x 38 mm
Fuse type AM,GG

Environment

Protective treatment TH conforming to BV
Ambient air temperature for operation -50…70 °C
Height 55 mm
Width 94 mm
Depth 84 mm
net weight 0.24 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 9.0 cm
Package 1 Length 10.3 cm
Package 1 Weight 315.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.774 kg
Package 3 Height 77 cm

Contractual warranty

Warranty 18 months
