Schneider Electric

LS1D30

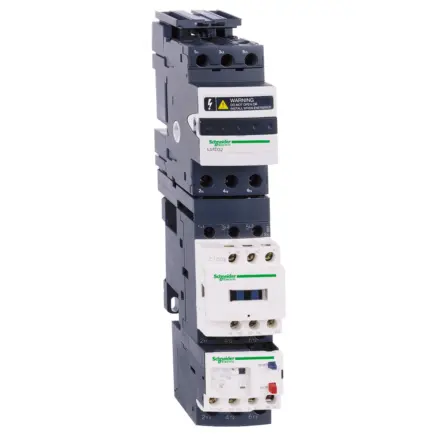

LS1D30 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LS1D30 Schneider Electric

LS1D30 Schneider Electric - TeSys fuse-disconnector - 3P - 30 A - fuse size 0.41 x 1.5 in - screw type

Extended Description for LS1D30 Schneider Electric

LS1D30 Schneider Electric - TeSys LS1 fuseholders are for use with TeSys D contactors.,Meets the application needs for fusible starters.,Fuseholder is DIN rail mounted.,The 3 pole fuseholder is for Class CC or KTK-R fuses.,The 30A fuse dimensions are 0.41 inches by 1.5 inches.,The fuse holder is 3.50 inches tall, 1.77 inches wide and 2.69 inches deep. It weighs 0.66 lbs.,Fuse holder is UL Listed and CSA certified.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£27.04 Exc. VAT
£32.45 Inc. VAT

Main

Range TeSys
Product name TeSys LS1
product or component type Fuse-disconnector
Device short name LS1D
Poles description 3P

Complementary

mounting support Rail
Mounting position Vertical (tolerance: +/- 23°)
Control type Toggle
[Ue] rated operational voltage 600 V
[Ie] rated operational current 30 A for power circuit
Local signalling Blown fuse indication
Fuse size 0.41 x 1.50 in
Fuse type CC
Connections - terminals Screw clamp terminals 2 cable(s) 1…6 mm²solid,Screw clamp terminals 2 cable(s) 1…6 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end
Tightening torque 1.7 N.m on screw clamp terminals

Environment

Standards IEC 60947-1,IEC 60947-2,IEC 60947-4-1,UL 508
Product certifications UL,CSA
IP degree of protection IP20
Protective treatment TH
Ambient air temperature for operation -50…70 °C operation
Height 89 mm
Width 45 mm
Depth 68.3 mm
net weight 0.3 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.2 cm
Package 1 Width 7.7 cm
Package 1 Length 11.0 cm
Package 1 Weight 188.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
