Schneider Electric

LT4760BS

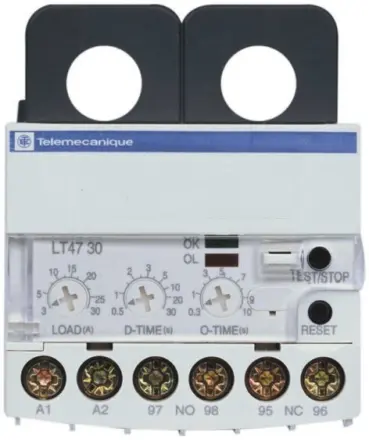

LT4760BS Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LT4760BS Schneider Electric

LT4760BS Schneider Electric - TeSys LT47 electronic over current relays - manual - 5...60 A - 24 V AC/DC

Extended Description for LT4760BS Schneider Electric

LT4760BS Schneider Electric - TeSys LR47 electronic overcurrent relay, 60A/690V, with manual reset, to be supplied with 24V AC/DC, for protection of motors with a rated current 5-50A.,It provides 3 dials to adjust the protection, LOAD (5-60A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration.,In addition, the device trips when there is a missing phase during more than O-TIME.,The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signalling.,Settings can be locked by sealing the transparent cover.,DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables).,Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£44.68 Exc. VAT
£53.61 Inc. VAT

Main

Range TeSys
Product name TeSys LT
product or component type Electronic over current relay
Device short name LT47
device application Protection
Relay application Overload Imax > Isetting,Sensitivity to phase failure,Locked rotor, mechanical jamming I > 3 x Isetting
[Us] rated supply voltage 24 V AC,24 V DC
Thermal protection adjustment range 5…60 A
[Ui] rated insulation voltage Power circuit: 600 V AC conforming to CSA,Power circuit: 600 V AC conforming to UL,Power circuit: 690 V AC conforming to IEC 60947-4-1

Complementary

Network frequency 50...60 Hz
Mounting support Rail
Tripping threshold 5...50 A
Electromagnetic compatibility Resistance to electrostatic discharge: 8 kV in open air conforming to IEC 61000-4-2,Resistance to electrostatic discharge: 6 kV in direct mode conforming to IEC 61000-4-2,Conducted emission: class A conforming to EN 55011,Immunity to electromagnetic interference: 10 V/m conforming to IEC 61000-4-3,Immunity to fast transients: 2 kV conforming to IEC 61000-4-4,Surge withstand: 6 kV conforming to IEC 61000-4-5,Conducted HF disturbances: 10 V conforming to IEC 61000-4-6
Auxiliary contact composition 1 NO + 1 NC
[Ith] conventional free air thermal current 3 A for signalling circuit
Associated fuse rating 3 A gG for signalling circuit,3 A BS for signalling circuit
[Uimp] rated impulse withstand voltage 6 kV
Time range 0.5..30 s - control type D-time,0.3...10 s - control type O-time
Local signalling 1 LED (green) ,1 LED (red)
Control type push-button: reset, electrical: reset
Connections - terminals Signalling circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end,Signalling circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end,Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Tightening torque Signalling circuit: 1.7 N.m M3.5
Height 70.3 mm
Width 71 mm
Depth 77.2 mm
net weight 0.192 kg

Environment

Standards IEC 60947,IEC 60255-6
Product certifications CSA,UL
Protective treatment TH conforming to IEC 60068
IP degree of protection IP20 conforming to IEC 60529,IP20 conforming to VDE 0106
Ambient air temperature for operation -25…60 °C without derating conforming to IEC 60947-4-1
Ambient air temperature for storage -30…80 °C
Operating altitude 2000 m
Mechanical robustness Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7,Vibrations: 4 gn conforming to IEC 60068-2-6
Dielectric strength 2 kV at 50 Hz conforming to IEC 60255-5

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 8 cm
Package 1 Length 8.7 cm
Package 1 Weight 191 g
Unit Type of Package 2 S02
Number of Units in Package 2 16
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.525 kg

Contractual warranty

Warranty 18 months
