Schneider Electric

LT6CT1001

LT6CT1001 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LT6CT1001 Schneider Electric

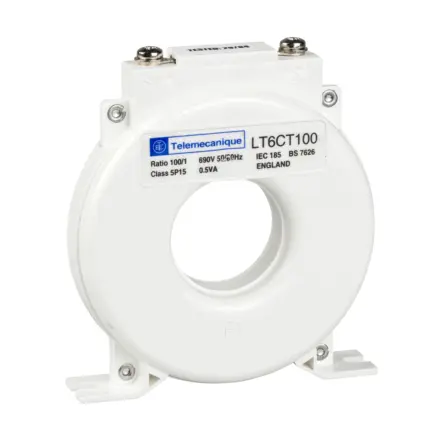

LT6CT1001 Schneider Electric - current transformer TeSys T LT6CT - 100/1 A - accuracy: class 5P

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£43.59 Exc. VAT
£52.31 Inc. VAT

Main

Range TeSys
Device short name LT6CT
product or component type Current transformer
Range compatibility TeSys TeSys T motor controller

Complementary

Current transformer ratio 100/1
accuracy class Class 5P
Precision limit factor 15
[Ui] rated insulation voltage 690 V
Diameter 35 mm
Cable cross section 30 mm²
Height 107 mm
Width 95 mm
Depth 25 mm
net weight 0.55 kg

Environment

Standards IEC 60185,BS 7626
Maximum ambient air temperature for operation 50 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.1 cm
Package 1 Width 12.5 cm
Package 1 Length 10.6 cm
Package 1 Weight 530.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 20
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.05 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD
