Description for LTMR27CBD Schneider Electric

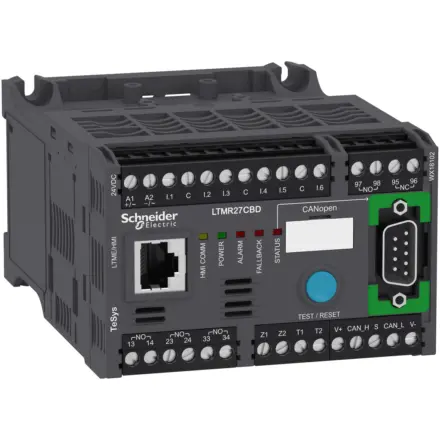

LTMR27CBD Schneider Electric - motor controller LTMR TeSys T - 24 V DC 27 A for CANopen

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£623.90 Exc. VAT
£748.68 Inc. VAT

Main

Range TeSys
Product name TeSys T
Device short name LTMR
product or component type Motor controller
device application Equipment monitoring and control
Measurement current 1.35…27 A
[Us] rated supply voltage 24 V DC
current consumption 56...127 mA
Supply voltage limits 20.4…26.24 V DC
communication port protocol CANopen
Bus type CANopen ISO 1198 interface, addressing 1...127, transmission rate 10...1000 kbit/s, SUB-D 9 with 4 twisted shielded pairs cable,CANopen ISO 1198 interface, addressing 1...127, transmission rate 10...1000 kbit/s, terminal block with 4 twisted shielded pairs cable

Complementary

[Ui] rated insulation voltage 690 V conforming to EN/IEC 60947-1,690 V conforming to CSA C22.2 No 14,690 V conforming to UL 508
[Uimp] rated impulse withstand voltage 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1,0.8 kV communication circuit conforming to EN/IEC 60947-4-1,0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1
Short-circuit withstand 100 kA conforming to EN/IEC 60947-4-1
Associated fuse rating 4 A gG for output,0.5 A gG for control circuit
Protection type Overload (long time),Thermal protection,Load fluctuation,Locked rotor,Overload,Thermal overload protection,Power factor variation,Phase unbalance,Reverse polarity protection,Earth-leakage protection,Phase failure
Network and machine diagnosis type Phase fault and earth fault trip counters,Trip context information,Waiting time after overload tripping,Fault recording,Remaining operating time before overload tripping,Starting current and time,Motor control command recording,Event recording,Running hours counter/operating time,Trip history information
Logic input number 6
Input current 7 mA
Current state 0 guaranteed Logic input: < 5 V and <= 15 mA for 5 ms
Current state 1 guaranteed Logic input: < 15 V and 2...15 mA for 15 ms
maximum output switching frequency 2 Hz
Load current 5 A at 250 V AC for logic output,5 A at 30 V DC for logic output
Permissible power 480 VA (AC-15), Ie = 2 A, 500000 cycles (output),30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)
Maximum operating rate 1800 cyc/h
Contacts type and composition 1 NO + 1 NC fault signal,3 NO
Metering type Temperature,Imbalance current,Phase current I1, I2, I3 RMS,Earth-fault current,Average current Iavg
Measurement accuracy 5...15 % earth fault current internal measurement,1 % voltage (100...830 V),3 % power factor,5 % earth fault current external measurement,+/- 30 min/year internal clock,0,02 temperature,1 % current,5 % active and reactive power
Overvoltage category III
Connection pitch 5.08 mm
Connections - terminals Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible with cable end,Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) flexible without cable end,Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible without cable end,Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) solid without cable end,Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) flexible with cable end,Control circuit: connector 2 cable(s) 0.2…1.5 mm² (AWG 24...AWG 14) flexible without cable end,Control circuit: connector 2 cable(s) 0.5…1.5 mm² (AWG 24...AWG 14) flexible without cable end,Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) solid without cable end
Tightening torque Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm
Pollution degree 3
Electromagnetic compatibility Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2,Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3,Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4,Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4,Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11,Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6,Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5,Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5,Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5,Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5,Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5,Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5,Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
Width 91 mm
Height 61 mm
Depth 122.5 mm
net weight 0.53 kg
Web services Web server
compatibility code LTMR

Environment

Standards CSA C22.2 No 14,IEC 60947-4-1,EN 60947-4-1,IACS E10,UL 508
Product certifications CSA,DNV,RINA,KERI,NOM,BV,CCC,EAC,ATEX,ABS,LROS (Lloyds register of shipping),C-Tick,GL,UL,RMRoS
Protective treatment 12 x 24 hour cycles conforming to EN/IEC 60068-2-30,48 h conforming to EN/IEC 60070-2-11,TH conforming to EN/IEC 60068
Fire resistance 650 °C conforming to EN/IEC 60695-2-12,960 °C conforming to UL 94
Ambient air temperature for operation -20…60 °C
Ambient air temperature for storage -40…80 °C
Operating altitude <= 2000 m without derating
Mechanical robustness Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6,Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6,Shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection IP20

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 10.0 cm
Package 1 Length 13.5 cm
Package 1 Weight 514.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.485 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
