Schneider Electric

LUFP7

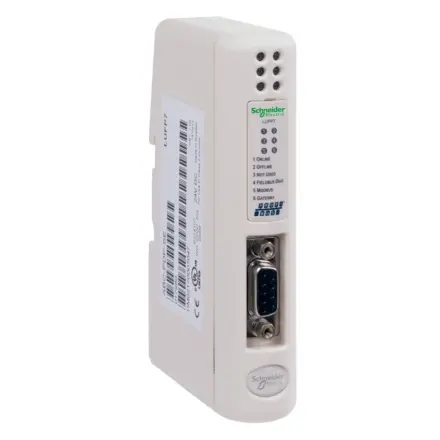

LUFP7 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LUFP7 Schneider Electric

LUFP7 Schneider Electric - Profibus DP/Modbus communication gateway - 1 Profibus DP SUB-D9 - 1 RJ45 Modbus

Extended Description for LUFP7 Schneider Electric

LUFP7 Schneider Electric - TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus.,On front side, it provides the Profibus DP connector, and device and communication LED status.,It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply.,It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP.,To be clipped on a 35mm DIN rail.,Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£644.72 Exc. VAT
£773.66 Inc. VAT

Main

Range TeSys
Device short name LUF
product or component type Communication gateway
Product compatibility ATV31,ATS48,TeSys U starter-controllers

Complementary

Bus type Profibus DP,Modbus
Connector type Female SUB-D 9 field bus,RJ45 Modbus,RJ45 to a PC
Maximum number of connections <= 8 Modbus slaves
[Us] rated supply voltage 24 V DC +/- 10 %
Current consumption 100 mA typical,280 mA maximum
Local signalling LED front panel
Services Command - bus type: Profibus DP - functions available: 122 configurable words,Configuration and adjustment - bus type: Fipio - functions available: by gateway mini messaging facility,Monitoring - bus type: Profibus DP - functions available: 122 configurable words
net weight 0.245 kg

Environment

Electromagnetic compatibility Electromagnetic emission conforming to IEC 50081-2,Electromagnetic immunity conforming to IEC 61000-6-2
Pollution degree 2 conforming to IEC 60664
Ambient air temperature for installation 5…50 °C
IP degree of protection IP20

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 17.200 cm
Package 1 Width 13.700 cm
Package 1 Length 5.800 cm
Package 1 Weight 220.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 36
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.689 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

Environmental disclosure
