Description for LV481433 Schneider Electric

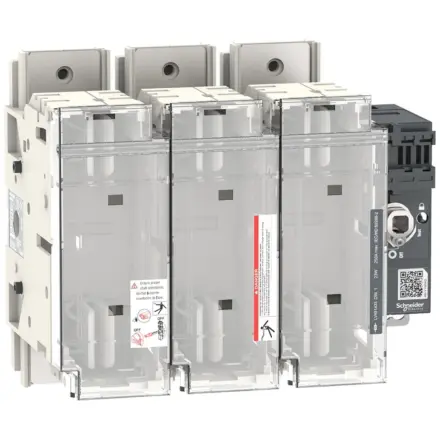

LV481433 Schneider Electric - Switch disconnector fuse, FuPact GSD250, 250 A, 3 poles, fuse type DIN NH1, front and right side control

Extended Description for LV481433 Schneider Electric

LV481433 Schneider Electric - This device FuPacT GSD250 is a 3 poles switch disconnector fuse with front and right side control.,It is dedicated to buildings, infrastructure and Industrial plants.,It protects against short-circuits and overloads on distribution circuits.,For AC22A/AC23A utilisation categories, the rated operational current is 250A at 690VAC.,FuPacT GSD250 has to be used with DIN fuses with blade size 1.,It can be equipped with a direct frontal handle, or with an external front or right side mounting rotary handle.,Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm).,FuPacT GSD250 in 3 poles version can also be equipped with a variety of accessories and auxiliaries such as auxiliary contacts, external neutral modules, connection accessories and terminal shields.,It complies with IEC 60947-1 and IEC 60947-3 standards.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£277.64 Exc. VAT
£333.17 Inc. VAT

Main

Range FuPacT
Product name FuPacT GS
Device short name GSD250
product or component type Switch-disconnector-fuse
device application Equipment protection, monitoring and control,Distribution
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH1
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 250 A ( 35 °C ) power dissipation per fuse: 23 W
[Ithe] conventional enclosed thermal current 250 A at 35 °C, Power dissipation per fuse: 23 W
Maximum power dissipation per pole 19 W
[Ue] rated operational voltage 690 V AC 50/60 Hz,800 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-22A: 250 A at 220/240 V AC 50/60 Hz,AC-23A: 250 A at 220/240 V AC 50/60 Hz,AC-22B: 250 A at 220/240 V AC 50/60 Hz,AC-23B: 250 A at 220/240 V AC 50/60 Hz,AC-22A: 250 A at 380/415 V AC 50/60 Hz,AC-23A: 250 A at 380/415 V AC 50/60 Hz,AC-22B: 250 A at 380/415 V AC 50/60 Hz,AC-23B: 250 A at 380/415 V AC 50/60 Hz,AC-22A: 250 A at 660/690 V AC 50/60 Hz,AC-23A: 250 A at 660/690 V AC 50/60 Hz,AC-22B: 250 A at 660/690 V AC 50/60 Hz,AC-23B: 250 A at 660/690 V AC 50/60 Hz

Complementary

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC),50 kA at 690 V (AC)
Rated operational power in W 132 kW at 380/400 V,220 kW at 660/690 V
Contacts type and composition 3 NO
Type of operating handle Direct frontal,External frontal,External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
mounting mode Fixed
Mounting support Backplate
Mechanical durability 10000 cycles
Electrical durability AC-22A: 1000 cycles 415 V AC 50/60 Hz,AC-23A: 1000 cycles 415 V AC 50/60 Hz,AC-22A: 1000 cycles 690 V AC 50/60 Hz,AC-23A: 1000 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors32 mm²,Power circuit: lugs-ring terminals95…240 mm²
Tightening torque Power circuit: 25 N.m
Width 234 mm
Height 195 mm
Depth 146 mm
net weight 3.2 kg
Standards EN/IEC 60947-1,EN/IEC 60947-3
Product certifications CE,CCC,EAC

Environment

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 20.500 cm
Package 1 Width 21.000 cm
Package 1 Length 34.000 cm
Package 1 Weight 3.611 kg
Unit Type of Package 2 S06
Number of Units in Package 2 10
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 46.500 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
