Description for LV481604 Schneider Electric

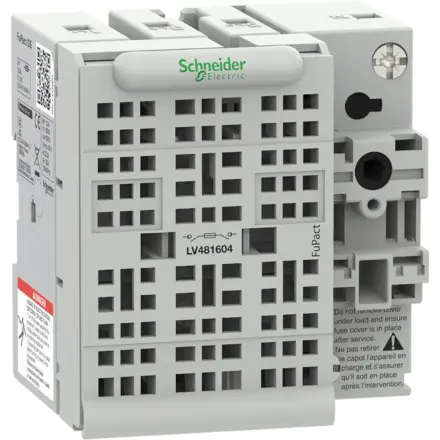

LV481604 Schneider Electric - Switch disconnector fuse, FuPact GSB32, 32 A, 4 poles, fuse type BS A1, front and right side control

Extended Description for LV481604 Schneider Electric

LV481604 Schneider Electric - This device FuPacT GSB32 is a 4 poles switch disconnector fuse with front and right side control.,It is dedicated to buildings, infrastructure and industrial plants.,It protects against short-circuits and overloads on distribution circuits.,For AC22A/AC23A utilisation categories, the rated operational current is 32A at 690VAC.,FuPacT GSB32 has to be used with BS fuse links size A1.,It can be equipped with a direct frontal handle, or with an external front or right side mounting rotary handle.,Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm).,FuPacT GSB32 in 4 poles version can also be equipped with auxiliary contacts.,It complies with IEC 60947-1 and IEC 60947-3 standards.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£82.95 Exc. VAT
£99.54 Inc. VAT

Main

Range FuPacT
Product name FuPacT GS
Device short name GSB32
product or component type Switch-disconnector-fuse
device application Equipment protection, monitoring and control,Distribution
Poles description 4P
Number of fuse carriers 3
Fuse type BS
Fuse size A1
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 32 A ( 35 °C ) power dissipation per fuse: 2.9 W
[Ithe] conventional enclosed thermal current 32 A at 35 °C, Power dissipation per fuse: 2.9 W
Maximum power dissipation per pole 1.2 W
[Ue] rated operational voltage 690 V AC 50/60 Hz,800 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-22A: 32 A at 220/240 V AC 50/60 Hz,AC-23A: 32 A at 220/240 V AC 50/60 Hz,AC-22B: 32 A at 220/240 V AC 50/60 Hz,AC-23B: 32 A at 220/240 V AC 50/60 Hz,AC-22A: 32 A at 380/415 V AC 50/60 Hz,AC-23A: 32 A at 380/415 V AC 50/60 Hz,AC-22B: 32 A at 380/415 V AC 50/60 Hz,AC-23B: 32 A at 380/415 V AC 50/60 Hz,AC-22A: 32 A at 660/690 V AC 50/60 Hz,AC-23A: 32 A at 660/690 V AC 50/60 Hz,AC-22B: 32 A at 660/690 V AC 50/60 Hz,AC-23B: 32 A at 660/690 V AC 50/60 Hz

Complementary

[Iq] Breaking capacity with fuses (kA RMS) 100 kA at 415 V (AC),80 kA at 690 V (AC)
Rated operational power in W 15 kW at 380/400 V,25 kW at 660/690 V
Contacts type and composition 4 NO
Type of operating handle Direct frontal,External frontal,External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
mounting mode Fixed
Mounting support Backplate,DIN rail
Mechanical durability 10000 cycles
Electrical durability AC-22A: 1500 cycles 415 V AC 50/60 Hz,AC-23A: 1500 cycles 415 V AC 50/60 Hz,AC-22A: 1500 cycles 690 V AC 50/60 Hz,AC-23A: 1500 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: screw-clamp terminals2.5…16 mm² flexible
Tightening torque Power circuit: 3 N.m - on screw-clamp terminals
Width 96 mm
Height 98 mm
Depth 83 mm
net weight 0.5 kg
Standards EN/IEC 60947-1,EN/IEC 60947-3
Product certifications CE,CCC,EAC

Environment

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 960 °C body conforming to IEC 60695-2-1

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 10.2 cm
Package 1 Length 11.5 cm
Package 1 Weight 545.0 g
Unit Type of Package 2 S01
Number of Units in Package 2 4
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.352 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
