Description for LV481624 Schneider Electric

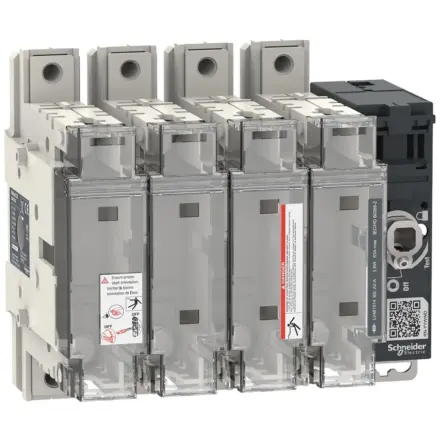

LV481624 Schneider Electric - Switch disconnector fuse, FuPacT GSB100, 100 A, 4 poles, fuse type BS A4, front and right side control

Extended Description for LV481624 Schneider Electric

LV481624 Schneider Electric - This device FuPacT GSB100 is a 4 poles switch disconnector fuse with front and right side control.,It is dedicated to buildings, infrastructure and industrial plants.,It protects against short-circuits and overloads on distribution circuits.,For AC22A/AC23A utilisation categories, the rated operational current is 100A at 690VAC.,FuPacT GSB100 has to be used with BS fuse links size A4.,It can be equipped with a direct frontal handle, or with an external front or right side mounting rotary handle.,Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm).,FuPacT GSB100 in 4 poles version can also be equipped with a variety of accessories and auxiliaries such as auxiliary contacts, connection accessories and terminal shields.,It complies with IEC 60947-1 and IEC 60947-3 standards.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£177.82 Exc. VAT
£213.38 Inc. VAT

Main

Range FuPacT
Product name FuPacT GS
Device short name GSB100
product or component type Switch-disconnector-fuse
device application Equipment protection, monitoring and control,Distribution
Poles description 4P
Number of fuse carriers 4
Fuse type BS
Fuse size A4
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 100 A ( 35 °C ) power dissipation per fuse: 8.4 W
[Ithe] conventional enclosed thermal current 100 A at 35 °C, Power dissipation per fuse: 8.4 W
Maximum power dissipation per pole 3.7 W
[Ue] rated operational voltage 690 V AC 50/60 Hz,800 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-22A: 100 A at 220/240 V AC 50/60 Hz,AC-23A: 100 A at 220/240 V AC 50/60 Hz,AC-22B: 100 A at 220/240 V AC 50/60 Hz,AC-23B: 100 A at 220/240 V AC 50/60 Hz,AC-22A: 100 A at 380/415 V AC 50/60 Hz,AC-23A: 100 A at 380/415 V AC 50/60 Hz,AC-22B: 100 A at 380/415 V AC 50/60 Hz,AC-23B: 100 A at 380/415 V AC 50/60 Hz,AC-22A: 100 A at 660/690 V AC 50/60 Hz,AC-23A: 100 A at 660/690 V AC 50/60 Hz,AC-22B: 100 A at 660/690 V AC 50/60 Hz,AC-23B: 100 A at 660/690 V AC 50/60 Hz

Complementary

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC),50 kA at 690 V (AC)
Rated operational power in W 51 kW at 380/400 V,90 kW at 660/690 V
Contacts type and composition 4 NO
Type of operating handle Direct frontal,External frontal,External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
mounting mode Fixed
Mounting support Backplate
Mechanical durability 10000 cycles
Electrical durability AC-22A: 1500 cycles 415 V AC 50/60 Hz,AC-23A: 1500 cycles 415 V AC 50/60 Hz,AC-22A: 1500 cycles 690 V AC 50/60 Hz,AC-23A: 1500 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors20 mm²,Power circuit: lugs-ring terminals25…95 mm²
Tightening torque Power circuit: 12 N.m
Width 184 mm
Height 162 mm
Depth 116 mm
net weight 2 kg
Standards EN/IEC 60947-1,EN/IEC 60947-3
Product certifications CE,CCC,EAC

Environment

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.9 cm
Package 1 Width 17.5 cm
Package 1 Length 21.2 cm
Package 1 Weight 2.298 kg
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 14.611 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
