Description for LV481683 Schneider Electric

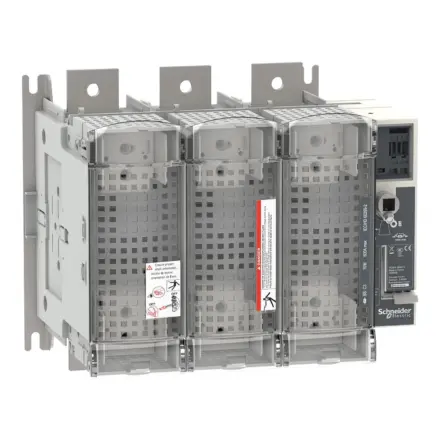

LV481683 Schneider Electric - Switch disconnector fuse, FuPact GSB800, 800 A, 3 poles, fuse type BS C3, front and right side control

Extended Description for LV481683 Schneider Electric

LV481683 Schneider Electric - This device FuPacT GSB800 is a 3 poles switch disconnector fuse with front and right side control.,It is dedicated to buildings, infrastructure and industrial plants.,It protects against short-circuits and overloads on distribution circuits.,For AC22B utilisation categories, the rated operational current is 800A at 690VAC.,For AC23B utilisation categories, the rated operational current is 800A at 415VAC.,FuPacT GSB800 has to be used with BS fuse links size C3.,It can be equipped with an external front or right side mounting rotary handle.,Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm).,FuPacT GSB800 in 3 poles version can also be equipped with a variety of accessories and auxiliaries such as auxiliary contacts, external neutral modules and terminal shields.,It complies with IEC 60947-1 and IEC 60947-3 standards.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,096.24 Exc. VAT
£1,315.49 Inc. VAT

Main

Range FuPacT
Product name FuPacT GS
Device short name GSB800
product or component type Switch-disconnector-fuse
device application Equipment protection, monitoring and control,Distribution
Poles description 3P
Number of fuse carriers 3
Fuse type BS
Fuse size C3
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 800 A ( 35 °C ) power dissipation per fuse: 70 W
[Ithe] conventional enclosed thermal current 800 A at 35 °C, Power dissipation per fuse: 70 W
Maximum power dissipation per pole 68 W
[Ue] rated operational voltage 690 V AC 50/60 Hz,1000 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 12 kV
[Ie] rated operational current AC-22A: 800 A at 220/240 V AC 50/60 Hz,AC-23A: 800 A at 220/240 V AC 50/60 Hz,AC-22B: 800 A at 220/240 V AC 50/60 Hz,AC-23B: 800 A at 220/240 V AC 50/60 Hz,AC-22A: 800 A at 380/415 V AC 50/60 Hz,AC-23A: 800 A at 380/415 V AC 50/60 Hz,AC-22B: 800 A at 380/415 V AC 50/60 Hz,AC-23B: 800 A at 380/415 V AC 50/60 Hz,AC-22A: 800 A at 660/690 V AC 50/60 Hz,AC-22B: 800 A at 660/690 V AC 50/60 Hz

Complementary

[Iq] Breaking capacity with fuses (kA RMS) 100 kA at 415 V (AC),100 kA at 690 V (AC)
Rated operational power in W 450 kW at 380/400 V,600 kW at 660/690 V
Contacts type and composition 3 NO
Type of operating handle External frontal,External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
mounting mode Fixed
Mounting support Backplate
Mechanical durability 5000 cycles
Electrical durability AC-22A: 100 cycles 415 V AC 50/60 Hz,AC-22A: 100 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors63 mm²,Power circuit: lugs-ring terminals 2 cable(s) 300 mm²,Power circuit: lugs-ring terminals 2 cable(s) 185 mm²
Tightening torque Power circuit: 44 N.m
Width 364 mm
Height 300 mm
Depth 250 mm
net weight 17 kg
Standards EN/IEC 60947-1,EN/IEC 60947-3
Product certifications CE,CCC,EAC

Environment

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1,960 °C body conforming to IEC 60695-2-1

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 39.5 cm
Package 1 Width 44 cm
Package 1 Length 52 cm
Package 1 Weight 17 kg
Unit Type of Package 2 P06
Number of Units in Package 2 2
Package 2 Height 75 cm
Package 2 Width 60 cm
Package 2 Length 80 cm
Package 2 Weight 43 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
