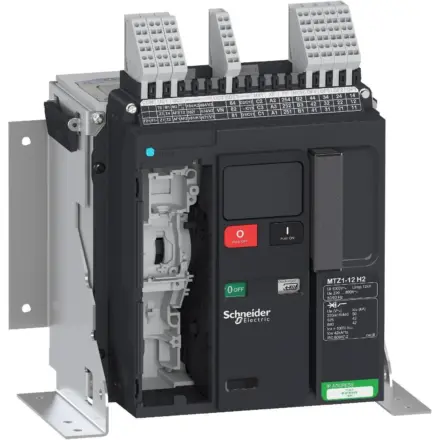

LV847141 Schneider Electric - Circuit breaker Masterpact MTZ1 12H2 - 1250 A - 3P fixed - w/o Micrologic

Extended Description for LV847141 Schneider Electric

LV847141 Schneider Electric - SCHNEIDER MTZ1 12H2 1250A 3P FIXED W/O MICROLOGIC (B)

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,949.07 Exc. VAT
£2,338.88 Inc. VAT

Main

Range MasterPacT
Product name MasterPact MTZ1
Device short name MTZ1 12 H2
product or component type Circuit breaker
device application Power distribution protection
Poles description 3P
Control unit Without control unit
Product compatibility control unit MicroLogic 2.0 X, control unit MicroLogic 5.0 X, control unit MicroLogic 6.0 X, control unit MicroLogic 7.0 X, control unit MicroLogic 2.0 Xi, control unit MicroLogic 5.0 Xi, control unit MicroLogic 6.0 Xi, control unit MicroLogic 7.0 Xi
[In] rated current 1250 A at 40 °C
Performance type H2 50 kA 415 V AC
[Ue] rated operational voltage 690 V AC 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Selectivity category Category B
Control type Push-button
mounting mode Fixed

Complementary

[Icu] rated ultimate short-circuit breaking capacity 50 kA at 220/415 V AC 50/60 Hz,50 kA at 440 V AC 50/60 Hz,42 kA at 500/525 V AC 50/60 Hz,42 kA at 660/690 V AC 50/60 Hz
[Ics] rated service breaking capacity 50 kA at 220/415 V AC 50/60 Hz,50 kA at 440 V AC 50/60 Hz,42 kA at 500/525 V AC 50/60 Hz,42 kA at 660/690 V AC 50/60 Hz
[Icw] rated short-time withstand current 42 kA 0.5 s,42 kA 1 s,24 kA 3 s
[Icm] rated short-circuit making capacity 105 kA 220/415 V AC at 50/60 Hz,105 kA 440 V AC at 50/60 Hz,88 kA 500/525 V AC at 50/60 Hz,88 kA 660/690 V AC at 50/60 Hz
Integrated instantaneous protection (DIN in kA peak) 81…99 kA
Sensor rating 630 A,800 A,1000 A,1250 A
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 12 kV
Power dissipation in W 130 W
Maximum breaking time 25 ms
Maximum closing response time 50 ms
mounting support Rails,Base plate
Upside connection Front,Rear
Downside connection Front,Rear
Connection pitch 70 mm
Mechanical durability 12500 cycles with periodic preventive maintenance
Electrical durability 3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-2,6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-2,AC-23A: 3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3,AC-23A: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3,AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Height 301 mm
Width 276 mm
Depth 209 mm
net weight 14 kg
Standards EN/IEC 60947-1,EN/IEC 60947-2,EN/IEC 60947-2 Annex H,IEC 61557-12
Product certifications CE,IECEE CB Scheme

Environment

IP degree of protection IP30 conforming to EN 60529
Pollution degree 3 conforming to IEC 60947-1
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Operating altitude 0...2000 m without derating,2000...5000 m with derating

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 25.0 cm
Package 1 Width 40.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 15.69 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
