Schneider Electric

LV848478SP

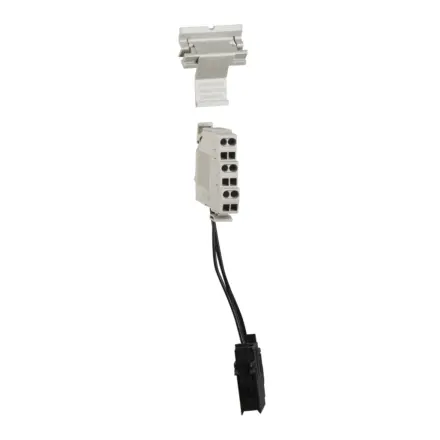

LV848478SP Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LV848478SP Schneider Electric

LV848478SP Schneider Electric - EF connected/closed contact - low level - for MTZ2/MTZ3/NW - drawout spare part

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£37.11 Exc. VAT
£44.53 Inc. VAT

Main

Range MasterPact
Device short name EF
product or component type Auxiliary contact
device application Control
Range compatibility Masterpact MasterPact MTZ2 circuit breaker,Masterpact MasterPact MTZ3 circuit breaker
Signal contacts composition 1 NO/NC

Complementary

Auxiliary contacts type Low level
Auxiliary contacts operation Connected position
mounting mode Drawout
[Ie] rated operational current DC-12: 0.3 A at 250 V DC,DC-12: 0.8 A at 125 V DC,DC-12: 2.5 A at 24/48 V DC,AC-12: 5 A at 240 V AC 50/60 Hz,AC-12: 5 A at 380 V AC 50/60 Hz,AC-12: 5 A at 240/380 V AC 50/60 Hz
Minimum load 2 mA at 15 V
Provided equipment 1 instruction sheet
Offer type Spare part

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.0 cm
Package 1 Width 15.0 cm
Package 1 Length 10.0 cm
Package 1 Weight 75.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 100
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.941 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet
