Schneider Electric

LVS04033

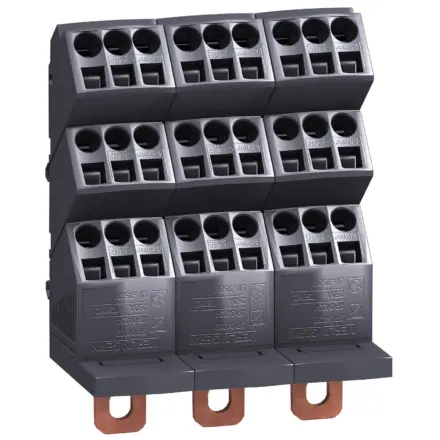

LVS04033 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS04033 Schneider Electric

LVS04033 Schneider Electric - LINERGY DP 3P D.BLK/COMPACT 250A 27HOLES

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£76.55 Exc. VAT
£91.86 Inc. VAT

Main

Range Linergy
range of product Linergy
product or component type Distribution block
Product name Linergy DP
Range compatibility PrismaSeT PrismaSeT G enclosure,PrismaSeT PrismaSeT P enclosure,PrismaSeT Prisma PH enclosure,PrismaSeT PrismaSeT Pack 250 enclosure
accessory / separate part category Current distribution accessory
IP degree of protection IPxx B

Complementary

mounting support Mounting plate,DIN rail
Installed device EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - horizontal installation,EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation,EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - horizontal installation,EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation,EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - vertical installation,EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - vertical installation,EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - vertical installation,EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation,ComPact: fixed INS250 - control: direct front rotary handle - vertical installation,ComPact: fixed INS250 - control: lateral handle - vertical installation,ComPact: fixed INV100 - control: direct front rotary handle - horizontal installation,ComPact: fixed INV100 - control: direct front rotary handle - vertical installation,ComPact: fixed INV160 - control: direct front rotary handle - horizontal installation,ComPact: fixed INV160 - control: direct front rotary handle - vertical installation,ComPact: fixed INV200 - control: direct front rotary handle - horizontal installation,ComPact: fixed INV200 - control: direct front rotary handle - vertical installation,ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation,ComPact: fixed INV250 - control: lateral handle - vertical installation,ComPact: fixed INV250 - control: direct front rotary handle - vertical installation,ComPact: fixed NSX100...250 and ammeter without earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation,ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation,ComPact: fixed NSX100...250 without earth leakage protection - control: motor mechanism - horizontal installation,ComPact: plug-in NSX100...250 without earth leakage protection - control: toggle - horizontal installation,ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - vertical installation
Poles description 3P
[Ue] rated operational voltage 690 V AC
[Ui] rated insulation voltage 750 V AC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current 250 A at 40 °C
[Icw] rated short-time withstand current 8.5 kA for 1 s
[Ipk] rated peak withstand current 30 kA
I²t on activation 72250000 A².s
Connections - terminals Supply: direct connection120 mm²,Distribution: spring terminal (phase) , 6 x 4…10 mm² (flexible) ,Distribution: spring terminal (phase) , 3 x 6…16 mm² (flexible) ,Distribution: spring terminal (phase) , 6 x 4…10 mm² (rigid) ,Distribution: spring terminal (phase) , 3 x 6…16 mm² (rigid)
Height 140 mm
Width 105 mm
Depth 64 mm
net weight 0.74 kg
Colour Anthracite grey (RAL 7016)

Environment

Pollution degree 3
Overvoltage category III
Resistance to incandescent wire 960 °C conforming to IEC 60695-2-11
Standards IEC 60947-7-1,IEC 61439-1, inside enclosure,IEC 61439-2, inside enclosure
Product certifications ASTA
Ambient air temperature for operation -25…55 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 12.0 cm
Package 1 Length 14.5 cm
Package 1 Weight 719.0 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 12.0 cm
Package 2 Width 29.0 cm
Package 2 Length 33.5 cm
Package 2 Weight 7.21 kg
Unit Type of Package 3 P06
Number of Units in Package 3 280
Package 3 Height 100.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 208.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
