Schneider Electric

LVS04228

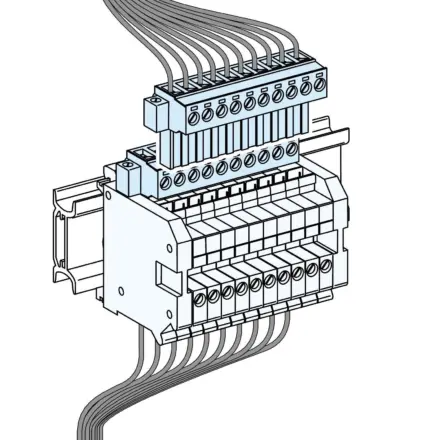

LVS04228 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS04228 Schneider Electric

LVS04228 Schneider Electric - LINERGY TA AUXIL.TERM.BLK 10 IN/20 OUT

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£22.58 Exc. VAT
£27.10 Inc. VAT

Main

Range Linergy
range of product Linergy
product or component type Terminal block
Product name Linergy TA
accessory / separate part category Connection accessory
Range compatibility Linergy Linergy TA auxiliary connector,PrismaSeT PrismaSeT G enclosure,PrismaSeT PrismaSeT P cubicle
Product compatibility Auxiliary connection

Complementary

Enclosure/cubicle description Cubicle,Floor-standing enclosure,Wall-mounted enclosure
[Ie] rated operational current 12 A (40 °C) at 250 V AC conforming to IEC,20 A (40 °C) at 300 V AC conforming to UL
Tightening torque 0.5…0.6 N.m
Connections - terminals Input: screw terminal 10 pin(s) 0.2…4 mm² rigid without cable end,Output: removable screw terminal block 20 pin(s) 0.2…4 mm² flexible with cable end
Conductor material Copper
Quantity per set Set of 1
Height 50 mm
Width 65 mm
Depth 50 mm
net weight 0.12 kg
Colour Light grey (RAL 7035)

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 5.2 cm
Package 1 Length 6.4 cm
Package 1 Weight 110.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 50
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.705 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
