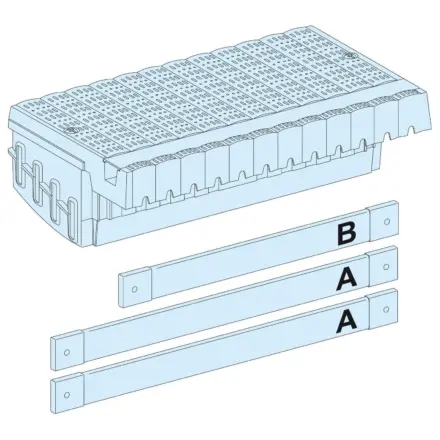

LVS04405 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS04405 Schneider Electric

LVS04405 Schneider Electric - LINERGY FC DISTRIBUTION BLOCK FOR COMPACT NSX250 3P FIXED/PLUG-IN+CONNECTION

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£228.36 Exc. VAT
£274.03 Inc. VAT

Main

Range Linergy
range of product Linergy
product or component type Device feeder
Product name Linergy FC
accessory / separate part category Connection accessory
Range compatibility PrismaSeT PrismaSeT P cubicle
Provided equipment Prefabricated flexible connection to Linergy busbars

Complementary

installation description Cubicle - width 650 mm
Number of devices 4 (3P)
Poles description 3P
Installed device ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation,ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - vertical installation,ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation,ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism - vertical installation,ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation,ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation,ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation,ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism - vertical installation,ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation,ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation,ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism - vertical installation,ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation,ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation
mounting support Mounting plate
Installation direction Horizontal
[Ui] rated insulation voltage 750 V AC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current 800 A at 40 °C
[Ue] rated operational voltage 690 V
[Ipk] rated peak withstand current 50 kA
I²t on activation 25000000 A².s
Permissible current 800 A at 40 °C,725 A at 60 °C,675 A at 70 °C
Connections - terminals Supply: flexible bars (phase) , 32 x 8 mm,Outgoer: plug in (phase) , 4 outgoers
Standards IEC 61439-1,IEC 61439-2
Product certifications KEMA,ASEFA
Quantity per set Set of 1
Length 440 mm
Height 132 mm
Depth 235 mm
net weight 6 kg
Colour Black

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.5 cm
Package 1 Width 24.5 cm
Package 1 Length 46.0 cm
Package 1 Weight 7.2 kg
Unit Type of Package 2 P12
Number of Units in Package 2 14
Package 2 Height 43.5 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 112.0 kg

Contractual warranty

Warranty 18 months
