Schneider Electric

LVS04561

LVS04561 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS04561 Schneider Electric

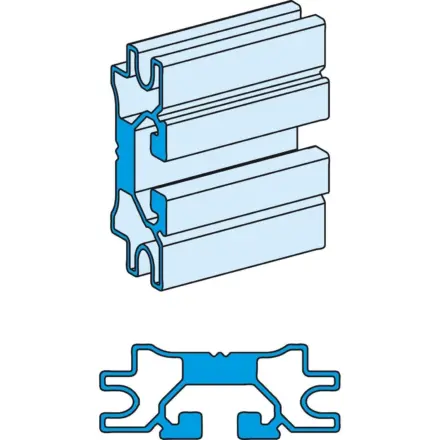

LVS04561 Schneider Electric - LINERGY LGYE PROFILE 800A LENGTH 2000MM

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£103.94 Exc. VAT
£124.73 Inc. VAT

Main

Range Linergy
range of product Linergy
product or component type Profile busbar
Product name Linergy LGYE
Range compatibility PrismaSeT PrismaSeT P enclosure
accessory / separate part category Busbar accessory
Busbar description Linergy
Quantity per set Set of 1

Complementary

Installation direction Horizontal, operating position: top,Horizontal, operating position: bottom
installation description Cubicle - width 650 mm,Cubicle - width 650 + 150 mm,Cubicle duct - width 300 mm,Cubicle duct - width 400 mm
[Ui] rated insulation voltage 1000 V
[Uimp] rated impulse withstand voltage 12 kV (degree of pollution: 3)
[Ie] rated operational current 800 A
[Icw] rated short-time withstand current 30 kA (1 s) for 2 supports (horizontal position)
Permissible current 800 A at 35 °C: <= IP31,680 A at 35 °C: > IP31
Length 2000 mm
Height 150 mm
Width 60 mm
Depth 23 mm
net weight 2.11 kg
Colour Natural
Type of busbar connection Single t-slot
Connection pitch Free connection position

Environment

Standards IEC 61439-2,IEC 61439-1
Product certifications ASTA

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 6.6 cm
Package 1 Length 210.0 cm
Package 1 Weight 2.344 kg
Unit Type of Package 2 PAL
Number of Units in Package 2 48
Package 2 Height 24.0 cm
Package 2 Width 120.0 cm
Package 2 Length 202.0 cm
Package 2 Weight 133.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
