Schneider Electric

LVS04715

LVS04715 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS04715 Schneider Electric

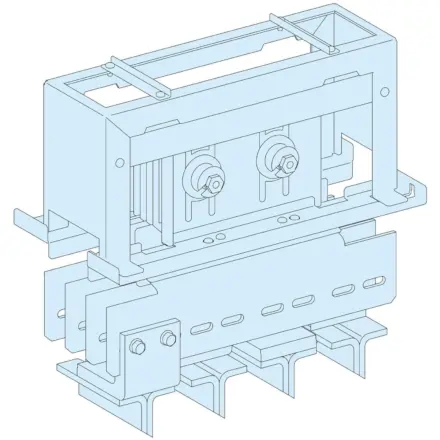

LVS04715 Schneider Electric - Interface and connection Canalis, PrismaSeT P, for MTZ2/NW, 3P, 1600A, set of 1

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,764.75 Exc. VAT
£2,117.70 Inc. VAT

Main

Range PrismaSeT
range of product PrismaSeT P
product or component type Interface and connection Canalis
product name PrismaSeT PrismaSeT P enclosure
accessory / separate part category Interface accessory
Standards IEC 61439-2, inside enclosure,IEC 61439-1, inside enclosure
Product certifications ASTA

Complementary

Cubicle-device connection KT with Canalis
Poles description 3P
installation description Cubicle - width 650 mm
Cubicle depth 600 mm: front,600 + 400 mm: rear
Installed device Masterpact: drawout NW08...16 - control: toggle vertical installation,Masterpact: fixed NW08...16 - control: toggle vertical installation
[Ie] rated operational current 1600 A
Colour Natural
Height 350 mm
Width 575 mm
Depth 450 mm
net weight 42.06 kg
Quantity per set Set of 1
functional unit 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on Canalis 27,650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 rear connection on Canalis 17,650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 front connection on Canalis 27,650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 rear connection on Canalis 16

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 44.000 cm
Package 1 Width 41.000 cm
Package 1 Length 62.000 cm
Package 1 Weight 35.500 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
