Schneider Electric

LVS04737

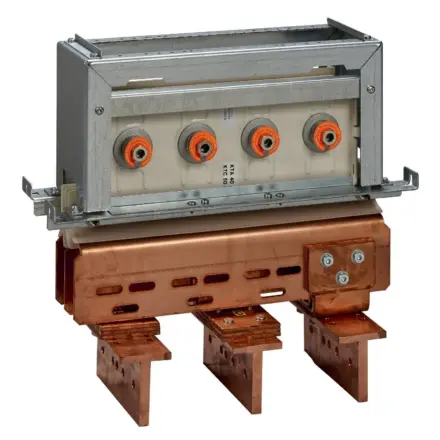

LVS04737 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS04737 Schneider Electric

LVS04737 Schneider Electric - CANALIS Connection 4000A MTZ2/NW 3P Prisma P

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2,819.98 Exc. VAT
£3,383.97 Inc. VAT

Main

Range PrismaSeT
range of product PrismaSeT P
product or component type Interface and connection Canalis
product name PrismaSeT PrismaSeT P enclosure,Canalis Canalis KT busbar trunking,Masterpact MasterPact NW circuit breaker
accessory / separate part category Interface accessory
Standards IEC 61439-2, inside enclosure,IEC 61439-1, inside enclosure
Product certifications ASTA

Complementary

Cubicle-device connection KT with Canalis
Poles description 4P
Location of connection Upstream
installation description Cubicle 4000A - width 650 mm
Cubicle depth 600 + 400 mm: rear
Installed device Masterpact: NW40 vertical installation - rear connection
[Ie] rated operational current 4000 A
Height 350 mm
Width 575 mm
Depth 450 mm
Quantity per set Set of 1

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 44.000 cm
Package 1 Width 40.500 cm
Package 1 Length 60.500 cm
Package 1 Weight 66.000 kg

Contractual warranty

Warranty 18 months
