Schneider Electric

LVS04964

LVS04964 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS04964 Schneider Electric

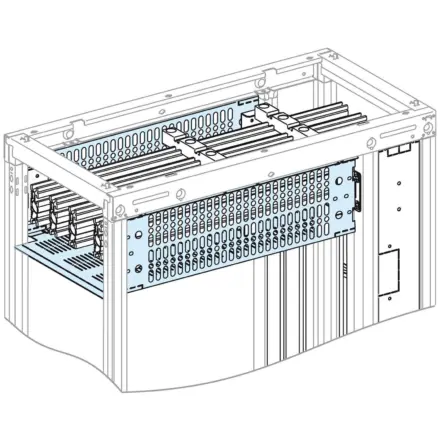

LVS04964 Schneider Electric - Front and rear barriers, PrismaSeT P, form 2 horizontal partitioning, height 4M, for enclosures W400 D600

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£82.30 Exc. VAT
£98.76 Inc. VAT

Main

Range PrismaSeT
range of product PrismaSeT P
product or component type Partition
accessory / separate part category Insulation accessory
Range compatibility PrismaSeT PrismaSeT P enclosure,Linergy Linergy BS busbar,Linergy Linergy LGYE busbar
Product specific application To partition horizontal busbars
Cubicle partitioning form Form 2

Complementary

Enclosure/cubicle width 400 mm
Enclosure/cubicle description Cubicle 4000A
installation description Cubicle 4000A - width 400 mm, depth 600 mm
Product destination For 600 mm deep framework
Cubicle depth 600 mm
Height 200 mm
Colour White (RAL 9003)
Surface finish Powder coated,Textured,Matt
Protective treatment Electrophoresis treatment and hot-polymerised polyester epoxy powder
net weight 2.64 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 34.5 cm
Package 1 Length 41.5 cm
Package 1 Weight 2.515 kg
Unit Type of Package 2 P06
Number of Units in Package 2 44
Package 2 Height 73.0 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 133.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
