Schneider Electric

LVS06561

LVS06561 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LVS06561 Schneider Electric

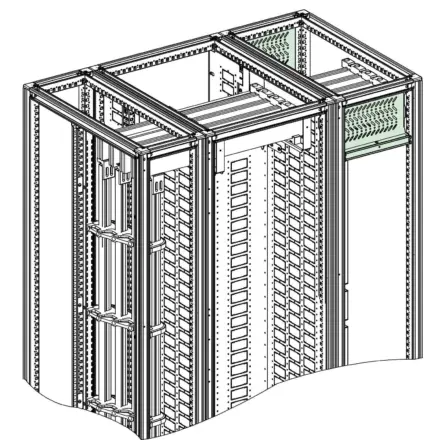

LVS06561 Schneider Electric - Partition Plate, PrismaSeT 6300, form 2, 3M, front and rear horizontal partition, for enclosures W300, D600

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£90.54 Exc. VAT
£108.65 Inc. VAT

Main

Range PrismaSeT
range of product PrismaSeT 6300
product or component type Horizontal partition
Range compatibility PrismaSeT PrismaSeT 6300 enclosure
Product specific application To partition horizontal busbars
Cubicle partitioning form Form 2

Complementary

Enclosure/cubicle width 300 mm
Enclosure/cubicle description Cubicle
installation description Cubicle - width 300 mm, depth 500 + 100 mm
Product destination For busbar compartment
Cubicle depth 500 + 100 mm
Busbar position Horizontal
Width 300 mm
Height 300 mm
Installation direction Horizontal
Colour White (RAL 9003)
Material Metal
Surface finish Powder coated
Special colour options Yes

Environment

IP degree of protection IP55

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 34.000 cm
Package 1 Length 51.000 cm
Package 1 Weight 1.618 kg
Unit Type of Package 2 P12
Number of Units in Package 2 30
Package 2 Height 69.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 58.540 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
