Schneider Electric

LX1FL600

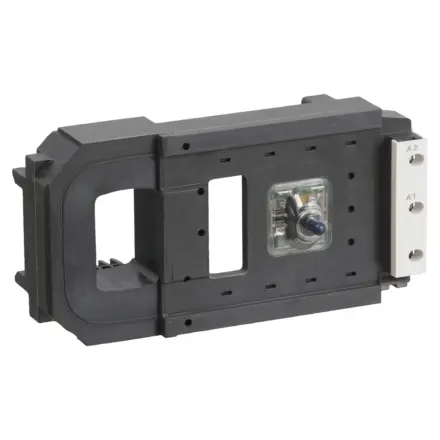

LX1FL600 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LX1FL600 Schneider Electric

LX1FL600 Schneider Electric - TeSys F - contactor coil - LX1FL - 550...600 V AC 40...400 Hz

Extended Description for LX1FL600 Schneider Electric

LX1FL600 Schneider Electric - TeSys F AC coil 550/600V 40-400Hz (voltage code X7), low sealed consumption,,for TeSys F 3-pole and 4-pole contactors LC1F630, LC1F1250.,It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C.,It provides to the contactor high operating rates until 1200 cycles/hour.,Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Main

Range TeSys
product or component type Contactor coil
Device short name LX1FL
Range compatibility TeSys TeSys F LC1F contactor
Product compatibility LC1F1250,LC1F630
Control circuit type AC at 40...400 Hz
[Uc] control circuit voltage 550...600 V AC 40...400 Hz
Inductance of closed circuit 19.5 H
Average resistance 155 Ohm inrush at 20 °C,4560 Ohm holding at 20 °C
Operating time 100...200 ms opening,40...80 ms closing
Mechanical durability 5 Mcycles
Maximum operating rate 1200 cyc/h 55 °C

Complementary

Coil technology Without built-in suppressor module
Control circuit voltage limits Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C),Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C)
Inrush power in VA 1650 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA 22 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 20 W at 40...400 Hz

Environment

Ambient air temperature for operation -5…55 °C
net weight 1.5 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.16 cm
Package 1 Width 13.97 cm
Package 1 Length 24.13 cm
Package 1 Weight 1.411 kg

Contractual warranty

Warranty 18 months
