Schneider Electric

LX4D7RD

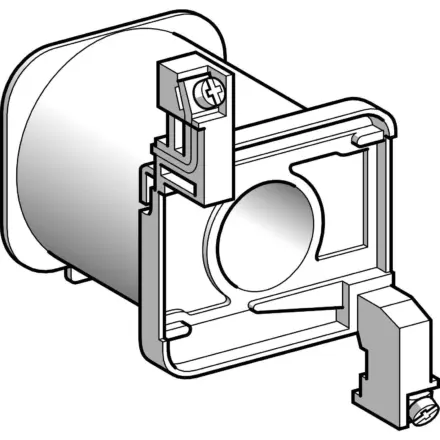

LX4D7RD Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LX4D7RD Schneider Electric

LX4D7RD Schneider Electric - TeSys D - contactor coil - LX4D7 - 440 V DC standard for 80 A contactor

Free Delivery to UK Mainland on orders over £25

Main

Range TeSys
product or component type Contactor coil
Device short name LX4D7
Control circuit type DC standard
[Uc] control circuit voltage 440 V DC
Average resistance 9195 Ohm at 20 °C
Inductance of closed circuit 640 H
Product compatibility LC1D80
Mechanical durability 10 Mcycles
Maximum operating rate 3600 cyc/h 60 °C

Complementary

Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.1...0.3 Uc (at <55 °C),Operational: 0.85...1.1 Uc (at <55 °C)
Time constant 75 ms
Inrush power in W 22 W (at 20 °C)
Hold-in power consumption in W 22 W at 20 °C

Environment

Ambient air temperature for operation -5…60 °C
net weight 0.68 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue
