Schneider Electric

LX4D8MD

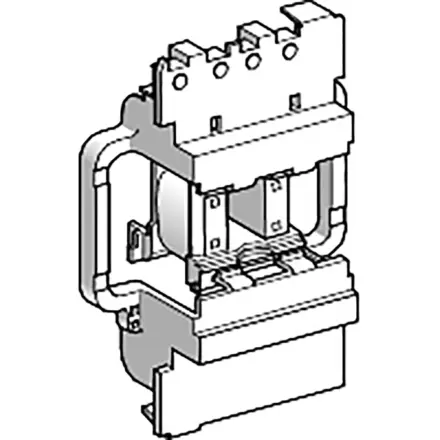

LX4D8MD Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LX4D8MD Schneider Electric

LX4D8MD Schneider Electric - TeSys D - contactor coil - LX4D8 - 220 V DC standard for 115 & 150 A contactor

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£80.60 Exc. VAT
£96.72 Inc. VAT

Main

Range TeSys
product or component type Contactor coil
Device short name LX4D8
Control circuit type DC standard
[Uc] control circuit voltage 220 V DC
Average resistance 9895 Ohm at 20 °C
Inductance of closed circuit 210.72 H
Product compatibility LC1D115,LC1D150
Mechanical durability 8 Mcycles
Maximum operating rate 1200 cyc/h 60 °C

Complementary

Coil technology Without built-in suppressor module
Control circuit voltage limits Operational: 0.75...1.2 Uc (at <55 °C),Drop-out: 0.15...0.4 Uc (at <55 °C)
Time constant 25 ms
Inrush power in W 270…365 W (at 20 °C)
Hold-in power consumption in W 2.4…5.1 W at 20 °C

Environment

Ambient air temperature for operation -5…60 °C
net weight 0.3 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 11.500 cm
Package 1 Length 17.000 cm
Package 1 Weight 301.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 8
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.658 kg
Unit Type of Package 3 P06
Number of Units in Package 3 128
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 50.528 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

Environmental disclosure
