Description for LXM28AUA5M3X Schneider Electric

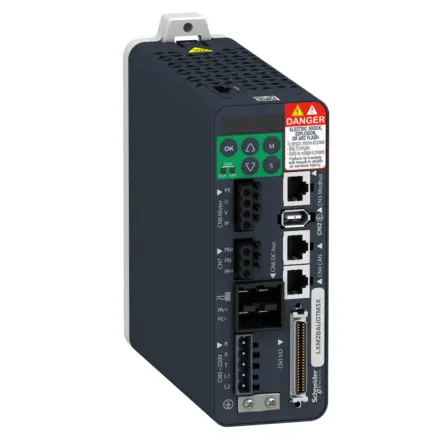

LXM28AUA5M3X Schneider Electric - motion servo drive, Lexium 28, single and three phase 200...230 V, 50 W

Extended Description for LXM28AUA5M3X Schneider Electric

LXM28AUA5M3X Schneider Electric - This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors.,It is a single or 3-phase servo drive, powered by 200V to 230V, its output power is 50W.,It operates via a PTI/PTO interface comprising 6 digital inputs and 3 digital outputs.,This servo drive embeds a CANopen/CANmotion fieldbus interfaceembeds a CANopen/CANmotion fieldbus interface,It controls a nominal speed of rotation of 3000rpm.,It has a pulse-train-input/output interface, 1 digital input, a position sequence mode, 1 Analog input for speed/torque control mode, and a safety function STO.,Its dimensions are 55mm wide, 150mm high, and 146mm deep. It weighs 1kg.,The Servo drive receives a command signal from a control system, amplifies the signal, and transmits electric current to the servo motor in order to run motion.,This servo drive is certified by CE, CULus, and CSA.,This servo drive is compatible with 0.5kW BCH2 servo motors.,It installs into the control cabinet, in a vertical position (±10°) required for its cooling.,Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines.,Designed for optimized & cost-effective.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£386.54 Exc. VAT
£463.85 Inc. VAT

Main

range of product Lexium 28
Device short name LXM28A
product or component type Motion servo drive
Format of the drive Compact housing
Line current 0.8 A 262.8 % at 220 V, single phase,0.8 A 227 % at 220 V, three phase

Complementary

Network number of phases Single phase,Three phase
[Us] rated supply voltage 200...240 V (- 10...15 %) for three phase,200...240 V (- 20...15 %) for single phase
Supply voltage limits 200…255 V three phase,170…255 V single phase
Supply frequency 50/60 Hz - 5...5 %
Network frequency 47.5...63 Hz
EMC filter Without EMC filter
Continuous output current 0.64 A at 16 kHz
Output current 3s peak 2 A at 220 V
Continuous power 50 W at 220 V
Nominal power 0.05 kW at 220 V 16 kHz
Switching frequency 16 kHz
Overvoltage category III
Maximum leakage current 1.3 mA
Output voltage <= power supply voltage
Electrical isolation Between power and control
Type of cable Shielded motor cable (temperature: 0…55 °C) copper
Electrical connection Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2),Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T),Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE),Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe)
Discrete input number 8 programmable (CN1),1 pulse train input (PTI) (CN1),2 fast capture (CN1),1 safety function STO (CN9)
Discrete input voltage 24 V DC for logic
Discrete input logic Positive or negative (CN1)
Discrete output number 5 logic output (CN1) at 12...24 V DC,1 pulse train output (PTO) (CN1)
Discrete output voltage 12...24 V DC
Discrete output logic Positive or negative (CN1)
Analogue input number 2
Absolute accuracy error 0.1 %
Analogue input type V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 14 bits,T_REF voltage analog input
Control signal type Servo motor encoder feedback CN2
Protection type Against reverse polarity: inputs signal,Against short-circuits: outputs signal,Overcurrent: motor,Overvoltage: motor,Undervoltage: motor,Overheating: motor,Overload: motor,Overspeed: motor
Safety function STO (safe torque off), integrated
Safety level SIL 2 conforming to IEC 61800-5-2: 2007,SIL 2 conforming to IEC 61508-1: 2010,PL d/category 3 conforming to ISO 13849-1: 2008,SIL 2 conforming to ISO 13849-1: 2009/AC,SIL 2 conforming to IEC 60204-1: 2006,SIL 2 conforming to IEC 60204-1: 2009/A1,SIL 2 conforming to IEC 60204-1: 2010/AC,SIL 2 conforming to IEC 62061: 2012
Communication interface CANopen, integrated,CANmotion, integrated
Connector type RJ45 (CN4) for CANopen, CANmotion
Method of access Slave
Transmission rate 250 kbit/s for bus length of 100…250 m for CANopen, CANmotion,500 kbit/s for bus length of 4…100 m for CANopen, CANmotion,1 Mbit/s for bus length of 4 m for CANopen, CANmotion
Number of addresses 1…127 for CANopen, CANmotion
Physical interface RS485 for Modbus Serial line slave
Status LED 1 LED (red) charge,1 LED (green) RUN,1 LED (red) error
Signalling function Servo status and fault codes five 7-segment display units
marking CE,CSA,CULus
Type of cooling Natural convection
Operating position Vertical
Product compatibility Servo motor BCH2 (40 mm, 1 motor stacks) at 50 W
Width 55 mm
Height 150 mm
Depth 146 mm
net weight 1 kg
Output current 3s peak 2 2 A at 220 V
Output current 3s peak 3 2 A at 220 V

Environment

Electromagnetic compatibility Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Standards IEC 61800-5-1
Product certifications CSA,CE,cULus
IP degree of protection IP20
Vibration resistance 3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3
Shock resistance 10 gn, type I conforming to IEC 60721-3-3
Relative humidity 5…95 % without condensation
Ambient air temperature for operation 0…55 °C
Ambient air temperature for storage -25…65 °C
Operating altitude <= 1000 m without derating,> 1000...2000 m 1 % per 100 m

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 23 cm
Package 1 Length 23.7 cm
Package 1 Weight 1.26 kg
Unit Type of Package 2 S03
Number of Units in Package 2 5
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.043 kg
Unit Type of Package 3 PAL
Number of Units in Package 3 40
Package 3 Height 60 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 55.12 kg

Logistical informations

Country of origin CN

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD
