Schneider Electric

LXM52DD12C41000

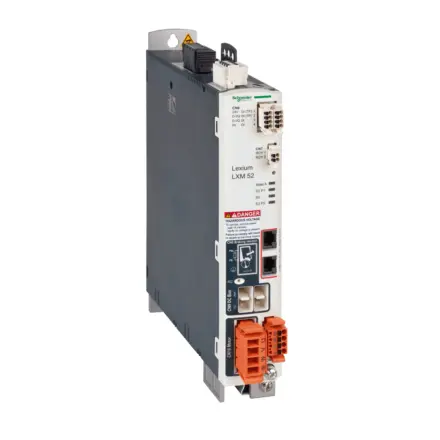

LXM52DD12C41000 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for LXM52DD12C41000 Schneider Electric

LXM52DD12C41000 Schneider Electric - LXM52 single drive 3A/12A

Extended Description for LXM52DD12C41000 Schneider Electric

LXM52DD12C41000 Schneider Electric - This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3.,The single drive features SERCOS III physical interface.,It offers 4 digital/4 touch probe inputs and 2 digital outputs.,It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 3A and a continuous power of 0.9kW.,It is furnished with connector terminals for electrical connection.,It is an IP20 rated product.,It weighs 1.8kg.,It is suitable for general machine control, packaging machine automation and material handling applications.,This product is certified by CE and UL. It meets EN/IEC 61800-5-1, UL 508C and EN/IEC 61800-3 standards.,This product is compatible with servo motor SH3 (55mm, 3 motor stacks), servo motor SH3 (70mm, 1 motor stack) and servo motor SH3 (70mm, 2 motor stacks).,Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.,Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£531.86 Exc. VAT
£638.23 Inc. VAT

Main

range of product PacDrive 3
Device short name LXM 52
product or component type Single drive
Product compatibility Servo motor SH3 (55 mm, 3 motor stacks)optimized in terms of torque and speed,Servo motor SH3 (70 mm, 1 motor stacks)optimized in terms of torque and speed,Servo motor SH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed,Servo motor SH3 (70 mm, 3 motor stacks)optimized in terms of high torque,Servo motor SH3 (100 mm, 1 motor stacks)optimized in terms of high torque,Servo motor SH3 (100 mm, 2 motor stacks)optimized in terms of high torque,Servo motor MH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed,Servo motor MH3 (70 mm, 3 motor stacks)optimized in terms of torque and speed,Servo motor MH3 (100 mm, 1 motor stacks)optimized in terms of torque and speed,Servo motor SHS (100 mm, 1 motor stacks)optimized in terms of torque and speed

Complementary

Network number of phases Three phase
[Us] rated supply voltage 208...480 V - 15...10 %
Supply frequency 50...60 Hz - 5...5 %
Continuous output current 3 A at 8 kHz
Output current 3s peak 12 A
Continuous power 1.6 kW
Nominal power 0.9 kW
Switching frequency 8 kHz
Overvoltage category III
Electrical connection Terminal, clamping capacity: 0.75...5.3 mm², AWG 18...AWG 10 (CN1),Terminal, clamping capacity: 0.75...5.3 mm², AWG 18...AWG 10 (CN10)
Tightening torque CN1: 0.68 N.m,CN10: 0.68 N.m
Number of inputs 4 digital,4 touch probe
Discrete input voltage 24 V DC
Number of outputs 2 digital
Discrete output voltage 24 V DC
Contact bounce time > 1 ms for compliment of STO_A, compliment of STO_B
Communication interface SERCOS III, integrated
Width 48 mm
Height 270 mm
Depth 217 mm
net weight 1.8 kg

Environment

Standards IEC 61800-5-1,UL 508C,IEC 61800-3
Product certifications UL,CE
IP degree of protection IP20 conforming to IEC 60721-3-3
Vibration resistance 10 m/s² conforming to IEC 60721-3-3
Shock resistance 100 m/s² conforming to IEC 60721-3-3
Pollution degree 2
Environmental characteristic 3K3 conforming to IEC 60721-3-3
Relative humidity 5…95 %
Ambient air temperature for operation 0…50 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 27.5 cm
Package 1 Length 32.5 cm
Package 1 Weight 2.3 kg
Unit Type of Package 2 S03
Number of Units in Package 2 3
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.636 kg
Unit Type of Package 3 P06
Number of Units in Package 3 24
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 67 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

Environmental disclosure
