M9A26909

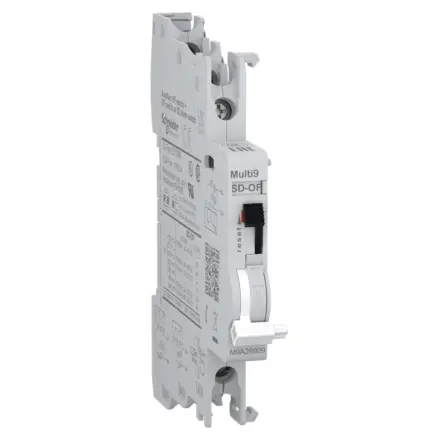

M9A26909 Schneider Electric - Auxiliary contact, Multi9 M9A, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection

M9A26909 Schneider Electric - This Multi9 electrical auxiliary is a modular double OC or fault contact. The 2 contacts (2 NO/NC) can report the signalling information of the associated device.,In AC network, the In rated current is 6A at 24VAC to 240VAC, 3A at 277VAC and 415VAC with operating frequency of 50Hz to 60Hz.,In DC network, the In rated current is 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC, 1A at 110VDC and 130VDC.,It is intended for new or renovated installation in industry and OEMs.,This double OC or fault contact is compatible with Multi9 ranges such as C60BP, C60SP, C60 and N40.,The OF/SD+OF is either used for device short name or compatibility code. The mechanical indicator is provided within the product for local signalling.,It has a screw clamp terminal connection at top and bottom. The connection allows rigid copper cable with a cable cross section of 2.5mm².,It has a screw clamp terminal connection at top and bottom. The connection allows rigid copper cables (2 cables) with a cable cross section of 1.5mm².,The Ui rated insulation voltage is up to 500V. It has a Uimp rated impulse withstand voltage of 4kV.,It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 1.,The dimensions are (W) 9mm x (H) 90mm x (D) 73mm. The product colour is white. The product weight is 38g.,The pollution degree is 3. The level of tropicalisation is treatment 2.,The wire stripping length is 9mm. The tightening torque of connection is 1N.m (top and bottom) for PZ1 screwdriver type.,The IP degree of protection is IP20.,The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C.,This product complies with EN/IEC 60947-5-1, GB/T 14048.5, EN 62019-2, UL 1077, UL 489, C22.2 No 5, C22.2 No 235 standards.,It has EAC and CCC quality labels and certified with CE, UKCA, UL certifications.
