Schneider Electric

M9XUP106

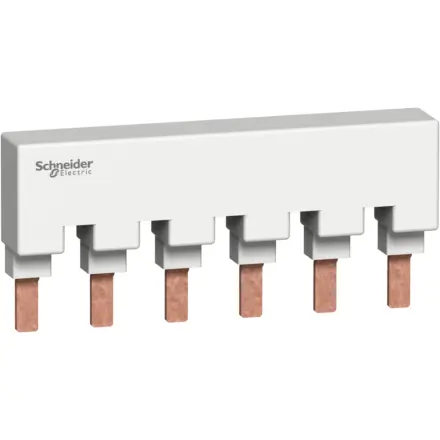

M9XUP106 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for M9XUP106 Schneider Electric

M9XUP106 Schneider Electric - Multi9 - comb busbar - 1L - 18 mm pitch - 6 modules - 115A

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£4.53 Exc. VAT
£5.43 Inc. VAT

Main

Range Multi9
product or component type Comb busbar
mounting mode Horizontal
accessory / separate part category Connection accessory
Lines description 1L
Length in 18 mm modules 6
Standards UL 508,UL 489,EN/IEC 61439-1

Complementary

Number of ways 6 ways 1 L
Poles configuration for 1 way 1 x 1P
Connection pitch 18 mm
Connector type Tooth
Distance between way 18 mm
Insulation Insulated
Device presentation Uncuttable
[Ie] rated operational current 115 A at 40 °C
[Ue] rated operational voltage 480 V AC 50/60 Hz Ph/Ph,277 V AC 50/60 Hz Ph/N
[Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to UL 508
Mounting location Top on tunnel type terminals
9 mm pitches 12
Width 108 mm
Colour Light grey (RAL 7035)
Range compatibility Multi9 Multi9 C60BP

Environment

Fire resistance 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree 3
IP degree of protection IP20 with end-pieces and tooth covers

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 5.100 cm
Package 1 Length 10.000 cm
Package 1 Weight 67.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.040 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
