Schneider Electric

METSECTR60500

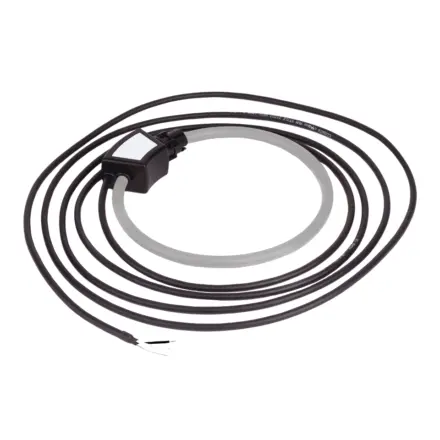

METSECTR60500 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for METSECTR60500 Schneider Electric

METSECTR60500 Schneider Electric - PowerLogic - Ropestyle current tranformer - 5000 A - d=191 mm - lead=2.4 m

Extended Description for METSECTR60500 Schneider Electric

METSECTR60500 Schneider Electric - This flexible core current transducer, designed for retrofit installation, has a line rated current of 50A to 5000A.,The coil can be wrapped around a maximum cable outer diameter of 191mm.,Measurement accuracy plus or minus 1% from 50A to 5000A.,A flying lead of 2.4 meters is available to connect the transducer to a meter.,This product received the cURus certification, and is UL recognized.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£108.21 Exc. VAT
£129.85 Inc. VAT

Main

Range PowerLogic
product or component type Current transducer
accessory / separate part category Measurement accessory
Range compatibility Acti 9 Acti9 iEM3000 iEM3555,Acti 9 Acti9 iEM3000 iEM3565,PowerLogic PowerLogic EM4200 EM4235,PowerLogic PowerLogic EM4200 EM4236,PowerLogic PowerLogic EM3500 EM3502A,PowerLogic PowerLogic EM3500 EM3550A,PowerLogic PowerLogic EM3500 EM3555A,PowerLogic PowerLogic EM3500 EM3560A,PowerLogic PowerLogic EM3500 EM3561A
Current transformer type Flexible core

Complementary

Electrical connection Flying lead: 2.4 m600 V
Measurement current 50…5000 A
Network frequency 50 Hz
Frequency measurement range 50…1500 Hz
Measurement accuracy 1 %
Installation category IV
Pollution degree 2
Thickness 8 mm
Height Opened: 600 mm
Diameter Closed: 191 mm

Environment

IP degree of protection IP67
Standards UL 61010-2-032,ANSI/IEEE C57.13,EN 61010-1,UL 61010-1,EN 61010-2-032
Product certifications CE,cURus,UL recognized
Relative humidity 0…95 %
Ambient air temperature for operation -15…60 °C
Ambient air temperature for storage -40…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 23.000 cm
Package 1 Length 23.500 cm
Package 1 Weight 180.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 25
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.500 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue
