Schneider Electric

METSEION95030

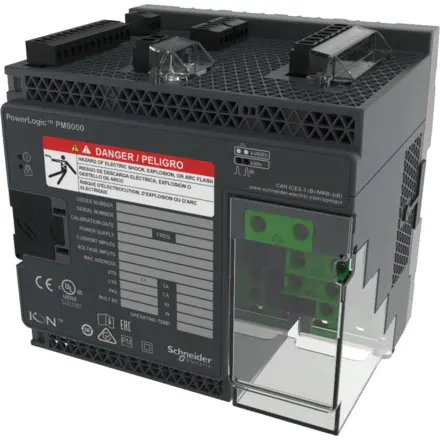

METSEION95030 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for METSEION95030 Schneider Electric

METSEION95030 Schneider Electric - PowerLogic⢠ION9000T meter, HSTC, DIN mount, no display, HW kit

Extended Description for METSEION95030 Schneider Electric

METSEION95030 Schneider Electric - The PowerLogic ION9000 is your 24/7 power quality expert, providing information, not just data.,A comprehensive, industry-leading Power Quality Instrument (PQI-A) certified to IEC 62586-1/-2 ensures reliable, precision performance that is perfect for both supply and demand side applications.,Third-party lab verified accuracy to Class 0.1S (ANSI C12.20, IEC 62053-22).,Highly customizable and modular, ION technology programmability and field installable option modules can satisfy any solution, protecting your investment now and into the future.,Providing power quality analysis according to both EN 50160 and IEEE 519, and patented Disturbance Direction Detection, you become a PQ expert and will be able to respond rapidly to system events.,Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol, ability to enable/disable communication ports, and 50 user configurable accounts.,With 2GB of memory to support 50 data logs, 50+ user-definable alarms, disturbance and transient waveforms.,1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use.,The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function.,8 digital inputs, 4 digital outputs and 2 relay outputs, plus the ability to add up to 4 option modules.,Option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs.,Ability to capture high-speed impulsive and oscillatory transients as short as 100 ns and record both waveforms and 1/2-cycle RMS concurrently on any event.,Voltage inputs of 100 to 690 V between phases; Current inputs of 1 A, 5 A; current class 2, 10, 20 A; Frequency of 20-450 Hz.,Wide control power range of 90 to 480 VAC or 110 to 480 VDC.,DIN rail mounting or panel mounting (with back to back adapter) transducer, plus 2 display options, further enhance the flexibility and adaptability of the ION9000.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£5,437.27 Exc. VAT
£6,524.72 Inc. VAT

Main

Range PowerLogic
Device short name ION95030
product or component type Energy and power quality meter
device application Power monitoring,WAGES metering,Net metering,Medium voltage,High voltage
Metering type Demand current I1, I2, I3, I4, I5,Peak demand currents,Demand power P, Q, S,Peak demand power PM, QM, SM,Calculated active and reactive energy (+/- W.h, +/- VAR.h)

Complementary

Power quality analysis EN 50160 compliance checking, conforming to IEEE 519 harmonic limit, conforming to IEC 61000-4-30: class A compliance reporting, conforming to IEEE 519 compliance reporting, waveform capture, total demand distortion, total harmonic distortion, up to the 63rd harmonic, up to the 127th harmonic with software, disturbance direction detection, dip, swell and transient, half cycle data acquisition, high-speed transient capture, coincidence disturbance waveform capture, transient detection (100 ns)
Type of measurement Voltage sags and swells,Current sags and swells,Voltage,Current,Frequency,Active and reactive power total,Apparent power total,Active and reactive power per phase,Apparent power per phase,Power factor total,Power factor per phase,Active and reactive energy,Apparent energy,Harmonic distorsion (I THD & U THD)
[Us] rated supply voltage 90...480 V AC 45...66 Hz +/- 10 %,90...120 V AC 400 Hz +/- 10 %,110...480 V DC +/- 10 %
Network frequency 50 Hz,60 Hz
Ride-through time 100 ms 6 cycles at 60 Hz 120 V AC typical,400 ms 24 cycles at 60 Hz 240 V AC typical,1200 ms 72 cycles at 60 Hz 480 V AC typical
[In] rated current 1 A,5 A
type of network 3P + N + E
Power consumption in VA 38 VA at 480 V AC
Maximum power consumption in VA 80 VA at 480 V AC
Display type Without display
Sampling rate 1024 samples/cycle
Measurement current 0.01…20 A
input type Voltage (impedance 5 MOhm),External CT (impedance 0.3 mOhm)5 x
Measurement voltage 57…400 V AC 42...69 Hz between phase and neutral,100…690 V AC 42...69 Hz between phases,10 kV AC transient
Frequency measurement range 20…450 Hz
Number of inputs 8 digital 30 V AC/60 V DC
Measurement accuracy Voltage +/- 0.1 %,Current +/- 0.1 %
Accuracy class Class 0.1S active energy conforming to IEC 62053-22,Class 0.1 active energy conforming to IEC 61557-12,Class 0.1 active energy conforming to ANSI C12.20,Class 0.5S reactive energy conforming to IEC 62053-24,Class 0.1 current conforming to IEC 61557-12,Class 0.1 voltage conforming to IEC 61557-12,Class 0.1 active power conforming to IEC 61557-12,Class 0.5 power factor conforming to IEC 61557-12
Number of outputs 4 digital,2 form C relay
Communication port protocol Modbus RTU at 2400...115200 bps - 2-wire,ION at 2400...115200 bps - 2-wire,DNP3 at 2400...115200 bps - 2-wire,Modbus TCP at 10/100 Mbit/s,ION TCP at 10/100 Mbit/s,DNP3 TCP at 10/100 Mbit/s,IEC 61850,Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s,DHCP,DNS,DLMS
Communication port support RS485 2 removable screw terminal block
Port Ethernet 10/100BASE-TX 2 RJ45
Communication gateway Ethernet/serial
Time synchronisation protocol GPS,IRIG-B,NTP,SNTP,PTP
Data recording Time stamping,Min/max of instantaneous values,User-definable data logs,Continuous logging or snapshot,Trending/forecasting,Event logs,Alarm logs,Configuration change,Power outage,User login/logout,Data logs,GPS synchronisation,Sequence of event recording
Memory capacity 2 GB
Cybersecurity Syslog protocol support,Robust security logs,Port hardening,Enable/disable communication ports,Hardware metrology lock
Web services Viewing of captured waveform,Web page,Pass/fail report for IEEE 519,Pass/fail report for EN 50160,ITIC (CBEMA) curve,SEMI curve,NEMA motor derating curve,Alarm notification by e-mail,TLS 1.2,Push historical data via mail
Ethernet service DHCP client,Device Profile Web Services (DPWS),Rapid Scanning Tree Protocol (RSTP),FTP/HTTP/HTTPS
Communication service Compliant reports,Power quality summary,Energy report,EcoStruxure Power Events Analysis,SMTP e-mail notification,SNMP
Tamperproof of settings Protected by sealable cover
Mounting support DIN rail
Electrical insulation class Class III conforming to EN/IEC 62052-11
Isolation voltage III400…690 V conforming to EN 61010-1:ed. 3,III347…600 V conforming to UL 61010-1:ed. 3,III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3
Width 160 mm
Depth 135.3 mm
Height 160 mm
net weight 1.5 kg

Environment

Electromagnetic compatibility EMC immunity conforming to IEC 62052-11,EMC immunity conforming to IEC 61326-1,EMC immunity conforming to IEC 61000-6-5,Electrostatic discharge immunity test conforming to IEC 61000-4-2,Immunity to radiated fields conforming to IEC 61000-4-3,Immunity to fast transients conforming to IEC 61000-4-4,Surge immunity test conforming to IEC 61000-4-5,Immunity to conducted disturbances conforming to IEC 61000-4-6,Immunity to magnetic fields at network frequency conforming to IEC 61000-4-8,Immunity to conducted disturbances - test level: 2...150 kHz conforming to CLC/TR 50579,Voltage dips and interruptions immunity test conforming to IEC 61000-4-11,Immunity to impulse waves conforming to IEC 61000-4-12,Conducted and radiated emissions conforming to EN 55011,Conducted and radiated emissions class B conforming to EN 55032,Conducted and radiated emissions class B conforming to FCC part 15,Conducted and radiated emissions class B conforming to ICES-003,Surge withstand conforming to ANSI C37.90.1,Surge withstand conforming to IEEE C37.90.1
IP degree of protection IP65 front: ,IP30 rear:
Degree of protection UL type 12, front
Relative humidity 5…95 %
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Installation category III
Operating altitude 0...3000 m
Standards ANSI C12.20,ANSI C37.90.1,IEC 61000-4-15,IEC 61000-4-30,IEC 61010-1,IEC 61326-1,IEC 61557-12,IEC 61850,IEC 62052-11,IEC 62052-31,IEC 62053-22,IEC 62053-23,IEC 62053-24,IEC 62586,UL 61010-1
Quality labels ISO 9001,ISO 14000

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 29.5 cm
Package 1 Width 26.4 cm
Package 1 Length 37.8 cm
Package 1 Weight 2.5 kg
Unit Type of Package 2 P06
Number of Units in Package 2 8
Package 2 Height 45.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 32.028 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Environmental disclosure
