Schneider Electric

METSERD192

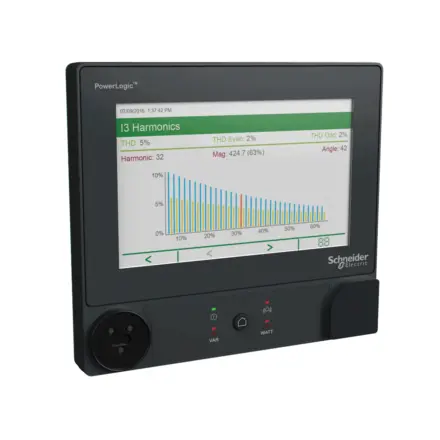

METSERD192 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for METSERD192 Schneider Electric

METSERD192 Schneider Electric - PowerLogic Remote display, color touchscreen, 192 x 192 mm for ION9200

Extended Description for METSERD192 Schneider Electric

METSERD192 Schneider Electric - Display (RD192) compatible with PowerLogic ION9000 series.,192mm by 192mm color graphical LCD with touchscreen interface.,Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status.,Viewable area: LCD touchscreen, 7 inches, 800 pixels by 480 pixels.,Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout.,Ingress Protection IP65 (UL type 12) rating.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£850.28 Exc. VAT
£1,020.34 Inc. VAT

Main

Range PowerLogic
product or component type Remote display
device application Human-machine dialogue application
Range compatibility PowerLogic PowerLogic ION9000
Display type LCD touch screen

Complementary

Display colour Color
Display resolution 800 x 480 pixels
Display size 7 inch
Information displayed Energy consumption,Voltage,Power,Harmonic distortion,Frequency,Current,System alarm,I/O status
Messages display capacity Graphic objects (bargraph, button, light...)
Local signalling Status: LED (green),Alarm: LED (red)
Control type 1 x push-button,Touch screen
Connector type RJ45
Provided equipment Mounting hardware
mounting mode Flush-mounted
Mounting support Framework remote display
Width 197 mm
Height 175 mm
projecting depth 27.5 mm
net weight 300 g

Environment

IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK08
Relative humidity 5…95 %
Operating altitude 0...3000 m
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…85 °C
Product certifications IEC,IEEE

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 24.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 1.6 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
