MGN15716

MGN15716 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for MGN15716 Schneider Electric

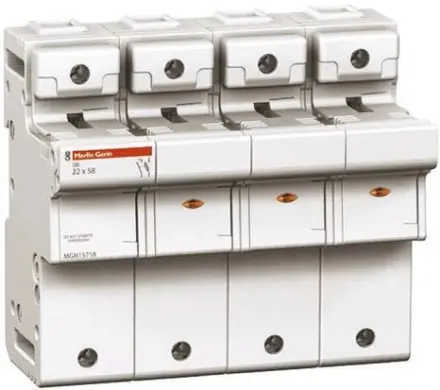

MGN15716 Schneider Electric - fuse-disconnector SBI - 2 poles - 125 A - for fuse 22 x 58 mm

Extended Description for MGN15716 Schneider Electric

MGN15716 Schneider Electric - This Acti9 SBI fuse holder is a low voltage fuse-disconnector.,It is used for industrial applications requiring a high breaking capacity.,It has 2P pole, up to 125A rated current, and gG or aM fuse curve with a fuse cartridge type of 22mm x 58mm.,it can be mounted on DIN rail for modular installation.,The general purpose fuse (gG fuse) provides overload and short-circuit protection.,The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current).,it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure.,It is equipped with a neon indicator light indicating blowing of the fuse cartridge.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£99.39 Exc. VAT
£119.27 Inc. VAT

Main

Range Acti9
Product name Acti9 SBI
product or component type Fuse-disconnector
Device short name SBI
Poles description 2P

Complementary

[In] rated current 32 A,40 A,50 A,63 A,80 A,100 A,125 A
Fuse curve AM,GG
Fuse size 22 x 58 mm
[Ue] rated operational voltage 690 V AC
mounting support 35 mm symmetrical DIN rail
Locking options description Non padlockable
9 mm pitches 8
Height 126.5 mm
Width 70 mm
Depth 70 mm
Connections - terminals Screw clamp terminals1 cable(s) 2.5…25 mm² rigid,Screw clamp terminals1 cable(s) 2.5…25 mm² flexible
Tightening torque 3.5 N.m

Environment

Standards IEC EN 60947-3
Pollution degree 3
Ambient air temperature for operation -20…60 °C
Ambient air temperature for storage -40…80 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 7.6 cm
Package 1 Length 12.7 cm
Package 1 Weight 369 g
Unit Type of Package 2 BB1
Number of Units in Package 2 3
Package 2 Height 8.2 cm
Package 2 Width 13.2 cm
Package 2 Length 22.4 cm
Package 2 Weight 1.173 kg
Unit Type of Package 3 S03
Number of Units in Package 3 27
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 11.043 kg
