Schneider Electric

MTN6003-0004

MTN6003-0004 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for MTN6003-0004 Schneider Electric

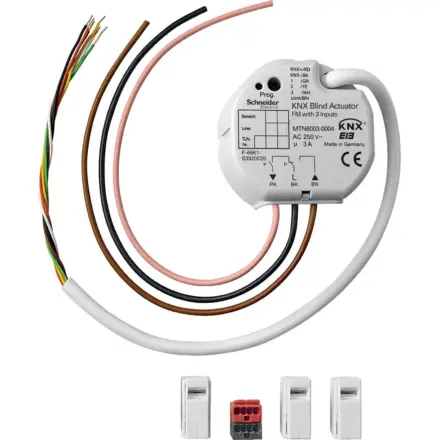

MTN6003-0004 Schneider Electric - KNX blind actuator FM with 3 inputs

Extended Description for MTN6003-0004 Schneider Electric

MTN6003-0004 Schneider Electric - Blind actuator has oneblind putput and three floating inputs,The inputs are enabled operation without programming and can connect to 230 V via a flexible cable, approx. 20 cm long.,it can be installed in a size 60 switch box,Each blind output has Nominal voltage: AC 230 V, 50 - 60 Hz.,Each blind output has switching current of 3A.,The actuator is able to control different blind types, running time, idle time and step interval.,It controls differentiated disable functions and weather alarms.,it has Shading controls with heating/cooling automatic mode and presence functio.,Dimensions are 53x53x28 (WxHxD.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£354.74 Exc. VAT
£425.69 Inc. VAT

Main

range of product KNX
product or component type Blind actuator
Operating mode KNX bus system
Bus type KNX
rated input Signal voltage (SELV): 3 x binary

Complementary

mounting support Flush
[Ue] rated operational voltage 230 V AC 50/60 Hz
[In] rated current 3 A
Number of outputs 1
Load type Motor: 600 VA, 230 V AC

Environment

IP degree of protection IP20

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 7.6 cm
Package 1 Length 7.6 cm
Package 1 Weight 154 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

Environmental disclosure
