Schneider Electric

MTN6003-0006

MTN6003-0006 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for MTN6003-0006 Schneider Electric

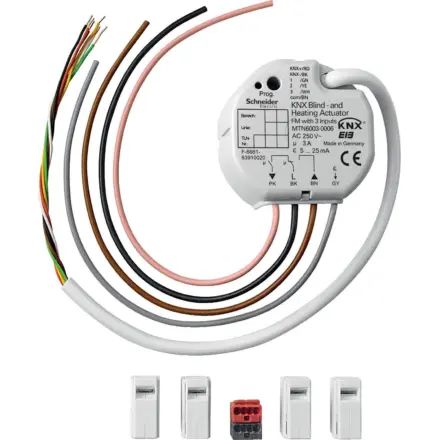

MTN6003-0006 Schneider Electric - KNX blind and heating actuator with 3 inputs

Extended Description for MTN6003-0006 Schneider Electric

MTN6003-0006 Schneider Electric - 1-gang blind actuator and 1-gang heating actuator with three inputs for installation in a size 60 switch box.,Floating contacts can be connected to the inputs The inputs have already been assigned to the actuator at the factory enabling operation extended to a max of 5 m,without programming Connection to 230 V via a flexible cable approx 20 cm long The inputs and the KNX are con-nected via a 6-core approx 30 cm long connecting cable The connecting cable for the inputs can be

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£563.60 Exc. VAT
£676.32 Inc. VAT

Main

range of product KNX
product or component type Blind and heating actuator
Operating mode KNX bus system
Bus type KNX
rated output 5...25 mA - 1 x for output 0 to 100 % (heating),3 A - 1 x (blind)
rated input Signal voltage (SELV): 3 x binary

Complementary

wiring device mounting Flush
[Ue] rated operational voltage 230 V
Load type Motor: 600 VA, 230 V AC,Valve: 230 V AC

Environment

IP degree of protection IP20

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 7.6 cm
Package 1 Length 7.6 cm
Package 1 Weight 163 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

Environmental disclosure
