Description for MTN645094 Schneider Electric

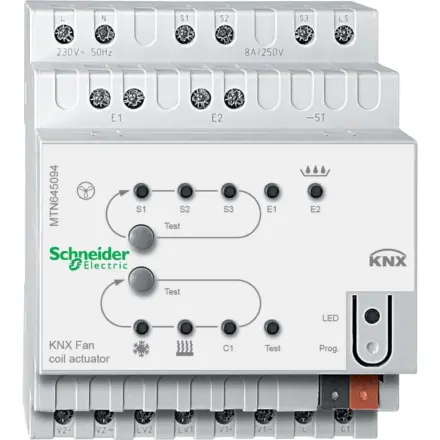

MTN645094 Schneider Electric - KNX fan coil actuator REG-K, light grey

Extended Description for MTN645094 Schneider Electric

MTN645094 Schneider Electric - Fan Coil actuator can control one fan coil with up to three speed fan and 2 valves.,It can control 2 or 4 pipe fan coils.,the actuator can be installed for Installation on DIN rails TH35 according to EN 60715,It has Two floating binary inputs for example for window contact and level contact for condensed water container.,Each fan relay has 8A switching capacaity.,The push-button plus with room temperature control can be used to activate the fan coil actuator.,There is an Auxilary relay with switching capacity 16 A for electrical heating as an example.,Power supply is AC 230 V ±10 %, 50/60 Hz.,The device has 4 module width, approximately 72 mm.,The color of device is light grey.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£231.06 Exc. VAT
£277.27 Inc. VAT

Main

range of product KNX
product or component type Heating actuator
Operating mode Manual,KNX bus system
Bus type KNX
rated output 0.5 A - 5 x for output continuous 0 to 100 %,0.5 A for output switching on/off
rated input Signal voltage (SELV): 2 x binary

Complementary

total number of 18 mm modules 4
wiring device mounting DIN rail
[Ue] rated operational voltage 207...253 V
Load type Valve: 230 V AC,Valve: 24 V AC

Environment

IP degree of protection IP20

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.100 cm
Package 1 Width 12.600 cm
Package 1 Length 15.900 cm
Package 1 Weight 332.000 g
Unit Type of Package 2 CAR
Number of Units in Package 2 10
Package 2 Height 19.700 cm
Package 2 Width 30.600 cm
Package 2 Length 41.000 cm
Package 2 Weight 3.688 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
