Schneider Electric

NSYBHS500

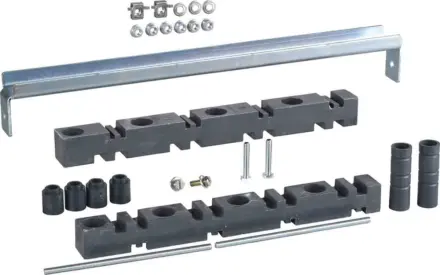

NSYBHS500 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYBHS500 Schneider Electric

NSYBHS500 Schneider Electric - Horizontal bar support up to 3200 A 500 mm

Extended Description for NSYBHS500 Schneider Electric

NSYBHS500 Schneider Electric - This is an horizontal bar support compatible with PrismaSeT, PanelSeT and PanelSeT electrical enclosures. The support is prepared for fixing bars in horizontal position.,The busbar support fixing centers width is 410mm. The height and the depth are 59mm and 39mm respectively. The busbar distance is 75mm.,The kit is made of plastic bar support and steel metal support.,It is suitable for installation on the structure of enclosure on the vertical uprights, at any height, adjustable with a pitch of 25 mm.,It can be fixed on vertical uprights.,The kit contains fixing elements, 1 metal support and 2 insulating bar supports.,This product is qualified as a green premium, with minimal use of hazardous substances.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£53.64 Exc. VAT
£64.37 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Busbar accessory
product or component type Busbar support
Anwendung Multi-purpose,Prisma application
Enclosure nominal dimensions -
Mounting location On structure of enclosure
mounting support Vertical uprights
Busbar position Horizontal
Range compatibility PanelSeT PanelSeT SF,Linergy Linergy BS,Prisma Prisma PH,PanelSeT PanelSeT SFX

Complementary

Cubicle-device connection Linergy BS horizontal busbar - fixed
Device composition fixing elements,1 metal support,2 insulating bar support
Quantity per set Set of 1
Material Bar support: plastic,Metal support: steel
Fixing mode By fixing element
Height 59.25 mm
Width Fixing centers: 410 mm
Depth 39 mm
[In] rated current 3200 A

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 10.000 cm
Package 1 Length 42.000 cm
Package 1 Weight 1.492 kg
Unit Type of Package 2 PAL
Number of Units in Package 2 20
Package 2 Height 29.000 cm
Package 2 Width 45.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 29.840 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
