Schneider Electric

NSYBVS500

NSYBVS500 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYBVS500 Schneider Electric

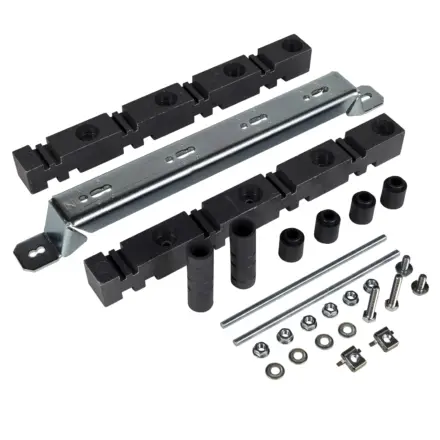

NSYBVS500 Schneider Electric - Vertical bar support up to 3200 A 500x500 mm

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£57.25 Exc. VAT
£68.70 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Busbar accessory
product or component type Busbar support
Anwendung Multi-purpose,Prisma application
Enclosure nominal dimensions -
Mounting location On structure of enclosure
Busbar position Vertical
Range compatibility Linergy Linergy LGYE,Linergy Linergy BS,Prisma Prisma PH

Complementary

Cubicle-device connection Linergy LGYE lateral busbar - fixed,Linergy BS lateral busbar - fixed
Device composition fixing elements,1 metal support,2 insulating bar support
Quantity per set Set of 1
Material Bar support: plastic,Metal support: steel
Fixing mode By fixing element
Width Fixing centers: 450 mm,Nominal: 500 mm
Depth 39 mm
[In] rated current 3200 A

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 14.000 cm
Package 1 Length 48.000 cm
Package 1 Weight 1.644 kg
Unit Type of Package 2 P12
Number of Units in Package 2 50
Package 2 Height 54.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 102.200 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure
