Schneider Electric

NSYCAG104X95LM

NSYCAG104X95LM Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYCAG104X95LM Schneider Electric

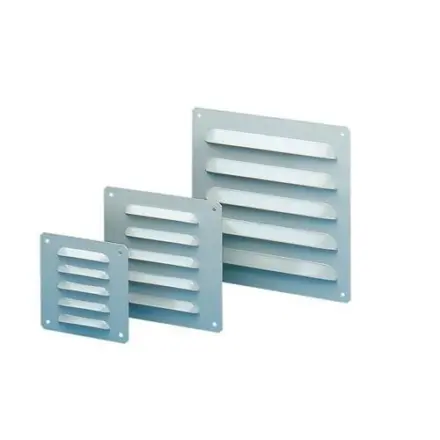

NSYCAG104X95LM Schneider Electric - Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23

Extended Description for NSYCAG104X95LM Schneider Electric

NSYCAG104X95LM Schneider Electric - ClimaSys CA metal outlet grille.,103 x 95 mm cut-out. External is 120 x 120 mm.,Thermal management accessory. Metal louvre plate.,Mounting on sides of enclosure, fixing mode by screws.,Steel made, epoxy-polyester powder finish.,Grey RAL 7035.,IP23 Protection.

Free Delivery to UK Mainland on orders over £25

Manufacturer New

12 available
1 - 2 w.days
£5.51 Exc. VAT
£6.61 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£5.11 Exc. VAT
£6.13 Inc. VAT

Main

Range ClimaSys
Product ClimaSys CA
Range compatibility ClimaSys ClimaSys CV
product or component type Metal louvre plate
accessory / separate part category Thermal management accessory
Accessory / separate part destination ClimaSys ventilation system
Mounting location Sides of enclosure
Fixing mode By screws
Device composition 1 metal louvre

Complementary

Material Steel
Colour Grey (RAL 7035)
Surface finish Epoxy-polyester powder
cut-out dimensions 95 x 104 mm
Height External: 120 mm
Width External: 120 mm
IP degree of protection IP23

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 12.000 cm
Package 1 Length 0.300 cm
Package 1 Weight 193.000 g
Unit Type of Package 2 CAR
Number of Units in Package 2 50
Package 2 Height 40.000 cm
Package 2 Width 30.000 cm
Package 2 Length 20.000 cm
Package 2 Weight 10.240 kg
Unit Type of Package 3 P12
Number of Units in Package 3 800
Package 3 Height 53.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 175.840 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
