Schneider Electric

NSYCGHF20

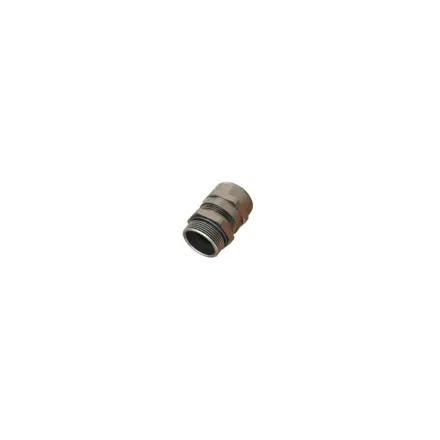

NSYCGHF20 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYCGHF20 Schneider Electric

NSYCGHF20 Schneider Electric - Set of cable gland + nut M20 for EMC application, IP68, UL approved

Extended Description for NSYCGHF20 Schneider Electric

NSYCGHF20 Schneider Electric - Cable gland for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X enclosures,The product is made of nickel plated brass body and CR (chloroprene) seal,The height is 35,5mm,This gland has a thread size of M20 and allows you to mount a cable into a pre-drilled hole,The set contains 1 cable gland, 1 lock nut and 1 seal,The cable gland is to be mounted on enclosure top and enclosure bottom,Ingress protection rating is IP68, ensuring the level of cable protection when using in harsh environments,Flame resistance V2 conforming to UL 94,Ambient air temperature for operation -20-100 °C permanent and -40-150 °C intermittent,Anti-corrosion protection is ensured by an chromium plated coating,Conforms with UL certification,Conforms with EMC directive

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£8.72 Exc. VAT
£10.46 Inc. VAT

Main

Range PanelSeT
product or component type Cable gland
accessory / separate part category Cable management accessory
Range compatibility PanelSeT PanelSeT CRN,PanelSeT PanelSeT S3D,PanelSeT PanelSeT S3X
Mounting location Enclosure top,Enclosure bottom
Cable entry Cable gland M20
Device composition 1 cable gland,1 lock nut,1 seal
Quantity per set Set of 5
Material Body: nickel plated brass,Seal: CR (chloroprene)

Complementary

Colour Grey
Surface finish Chromium plated
Fixing mode Screwed,By nut
Height 35.5 mm
net weight 0.032 kg

Environment

Product certifications UL
Environmental characteristic EMC directive
Flame retardance V2 conforming to UL 94
Ambient air temperature for operation -20…100 °C permanent,-40…150 °C intermittent
IP degree of protection IP68 conforming to IEC 60529 5 bar, 30 min

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 14.500 cm
Package 1 Length 15.000 cm
Package 1 Weight 32.000 g
Unit Type of Package 2 CAR
Number of Units in Package 2 50
Package 2 Height 11.000 cm
Package 2 Width 28.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.332 kg

Logistical informations

Country of origin TR

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD
