Schneider Electric

NSYCOCN80

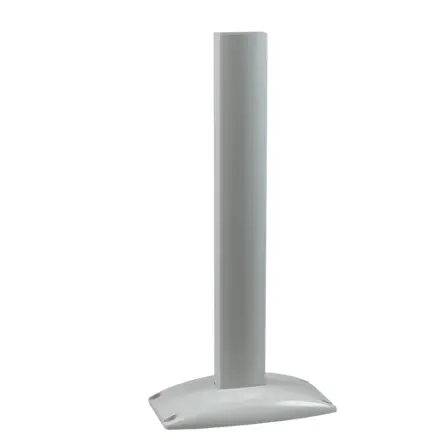

NSYCOCN80 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYCOCN80 Schneider Electric

NSYCOCN80 Schneider Electric - Mounting pillar for PanelSet S3D encl. RAL7035. H800m.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£185.43 Exc. VAT
£222.52 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Support pillar device
device application Multi-purpose
Enclosure nominal dimensions -
Mounting location Bottom face of the enclosure
mounting support With adaptation plate
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN
Device composition fixing elements,1 support pillar
Quantity per set Set of 1

Complementary

Material Extruded aluminium
Colour Grey (RAL 7035)
Surface finish Epoxy-polyester powder
Fixing mode By fixing element - on adaptation plate location
Permanent permissible load 0 kg
Height Nominal: 800 mm,Foot height: 743 mm,Base height: 55 mm
Width Base width: 370 mm,Fixing centers to floor: 330 mm,Foot width: 102 mm
Depth Base depth : 250 mm,Fixing centers to floor : 160 mm,Foot depth : 65 mm
net weight 3.8 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.000 cm
Package 1 Width 27.000 cm
Package 1 Length 75.500 cm
Package 1 Weight 4.059 kg
Unit Type of Package 2 P12
Number of Units in Package 2 8
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 44.472 kg

Contractual warranty

Warranty 18 months
