Description for NSYCR250W230VV Schneider Electric

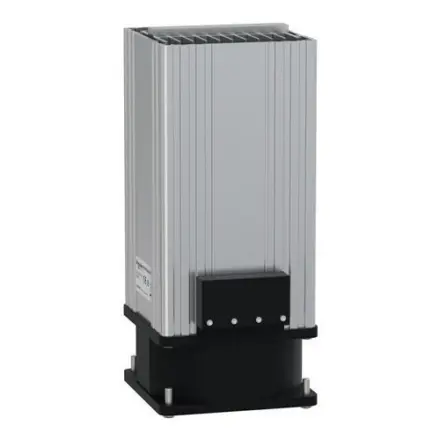

NSYCR250W230VV Schneider Electric - ClimaSys heating resistance ventil.250W, 230V aluminium

Extended Description for NSYCR250W230VV Schneider Electric

NSYCR250W230VV Schneider Electric - ClimaSys heating resistance ventilator.,250W, 230V AC, 50/60 Hz.,(-40 to 70)°C temp for operation. Resistance heater with fan.,35 mm DIN rail mounting support. Fixing mode by clips.,Extruded aluminium body.,IP20 Protection.,Electrical protection needed, must be installed with a thermal controller.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£124.72 Exc. VAT
£149.66 Inc. VAT

Main

Range ClimaSys
Product name ClimaSys CR
product or component type Resistance heater with fan
Range compatibility Prisma P,Prisma G
Power range 250 W
Input voltage 230 V AC 50/60 Hz

Complementary

Operating position Vertical
Ambient air temperature for operation -40…70 °C
IP degree of protection IP20
Product certifications VDE,UL
Material Body: extruded aluminium
Height 200 mm
Width 100 mm
Depth 100 mm
Condition of use Air sealed enclosure,Heaters must be installed with a thermal controller,Electrical protection is needed
Fixing mode By clips
mounting support 35 mm DIN rail

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 11.500 cm
Package 1 Length 21.500 cm
Package 1 Weight 1.104 kg
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.283 kg
Unit Type of Package 3 P12
Number of Units in Package 3 24
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 41.132 kg

Contractual warranty

Warranty 18 months
